LMH6572MQX/NOPB - Texas Instruments

Description: Triple 2:1 Video Multiplexer

Download LMH6572MQX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

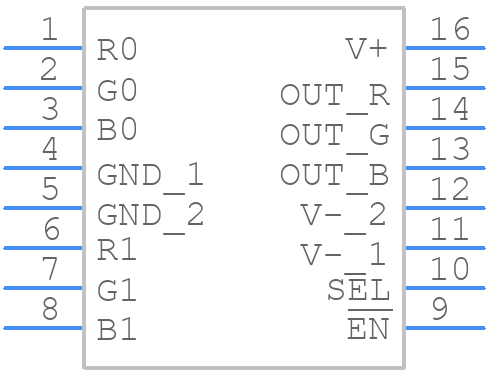

LMH6572MQX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMH6572MQX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ0016A
click to zoom
3D Models
LMH6572MQX/NOPB - Texas Instruments - 3D model - Small Outline Packages - DBQ0016A
click to zoom

LMH6572MQX/NOPB Details

  • Manufacturer Part Number:

    LMH6572MQX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    VIDEO MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Min (Vsup):

    -3 V

  • Neg Supply Voltage-Nom (Vsup):

    -3.3 V

  • Normal Position:

    NC

  • Number of Channels:

    3

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.727 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    28.5 mA

  • Supply Voltage-Max (Vsup):

    12 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LMH6572MQX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for signal traces.
  • The LMH6572MQX/NOPB requires a specific bias voltage and current to operate optimally. Ensure that the VCC and VEE pins are properly biased according to the datasheet, and that the input and output signals are within the recommended voltage ranges.
  • The LMH6572MQX/NOPB has an operating temperature range of -40°C to 85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal shutdown.
  • Common issues with the LMH6572MQX/NOPB can be troubleshooted by checking the PCB layout, ensuring proper biasing and termination, and verifying that the input and output signals are within the recommended voltage ranges. Additionally, using a spectrum analyzer or oscilloscope can help identify issues such as oscillation or instability.
  • While the LMH6572MQX/NOPB is designed for 50-ohm systems, it can be used in non-50-ohm systems with proper impedance matching. However, this may require additional circuitry and may affect the device's performance and stability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMH6572MQX/NOPB Overview

Use the download button to access the LMH6572MQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH65, or try a keyword search, such as Multiplexers or Switches
