A good PCB layout for the LMH6574MA/NOPB involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a shielded enclosure and keeping the input and output traces short and away from each other can help minimize EMI and noise.
To optimize the performance of the LMH6574MA/NOPB in a high-frequency application, use a low-ESR capacitor for the power supply, minimize the length of the input and output traces, and use a high-frequency-compatible PCB material. Additionally, consider using a shielded enclosure and adding a common-mode choke to reduce EMI.
The LMH6574MA/NOPB has an operating temperature range of -40°C to 85°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
The LMH6574MA/NOPB is a commercial-grade device and may not meet the requirements for high-reliability or aerospace applications. Texas Instruments offers other devices that are specifically designed for these applications, such as the LMH6574QMLV, which is a radiation-hardened version of the device.
To troubleshoot common issues with the LMH6574MA/NOPB, start by checking the power supply voltage and ensuring it is within the recommended range. Next, verify that the input and output impedances are matched, and check for any signs of oscillation or instability. If the issue persists, try adding a snubber circuit or a ferrite bead to the output to reduce ringing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6574MA/NOPB Overview

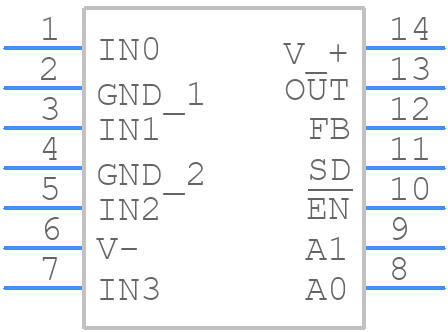

Use the download button to access the LMH6574MA/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH65,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
