LMH6580VS/NOPB - Texas Instruments

Description: 8x4 500 MHz Analog Crosspoint Switch, Gain of 1, Gain of 2

Download LMH6580VS/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

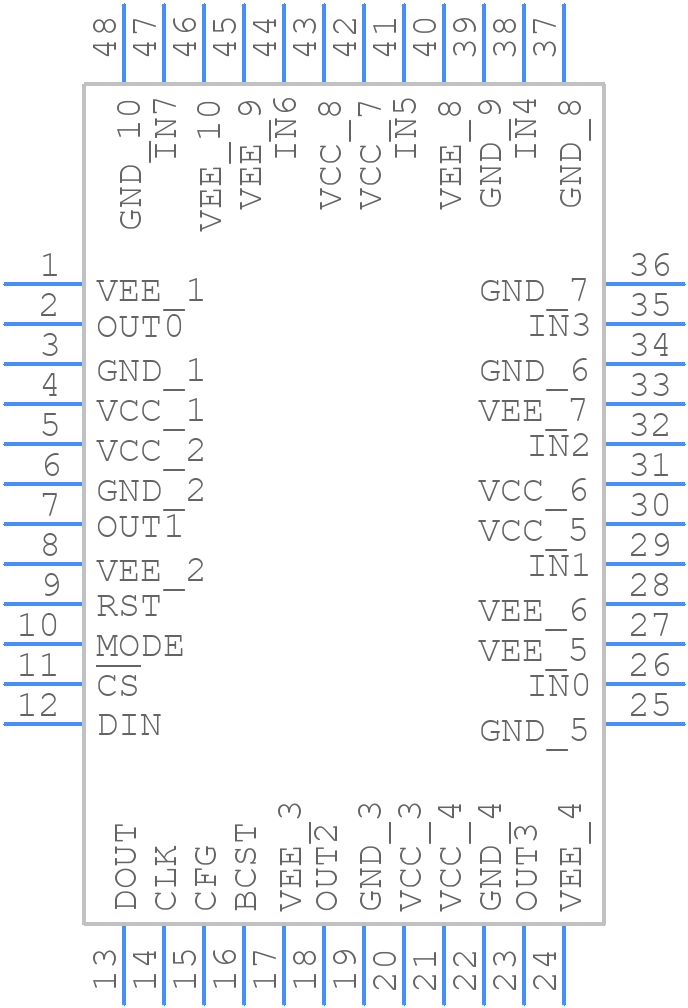

LMH6580VS/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

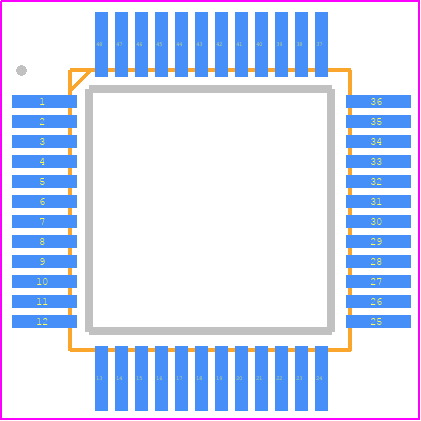

LMH6580VS/NOPB - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PFB (S-PQFP-G48)-2021
click to zoom
3D Models
LMH6580VS/NOPB - Texas Instruments - 3D model - Quad Flat Packages - PFB (S-PQFP-G48)-2021
click to zoom

LMH6580VS/NOPB Details

  • Manufacturer Part Number:

    LMH6580VS/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : Crosspoint/exchange

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • Bandwidth-Nom:

    500 MHz

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    60 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

LMH6580VS/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the input and output signals.
  • The LMH6580VS/NOPB requires a specific bias voltage and current to operate optimally. Ensure that the VCC and VEE pins are properly biased according to the datasheet, and that the input and output signals are within the recommended voltage ranges.
  • The LMH6580VS/NOPB has an operating temperature range of -40°C to 85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal shutdown.
  • Common issues with the LMH6580VS/NOPB can often be attributed to improper PCB layout, incorrect biasing, or inadequate decoupling. Check the datasheet for troubleshooting guidelines, and consider using simulation tools or consulting with a Texas Instruments application engineer for further assistance.
  • While the LMH6580VS/NOPB is optimized for 50-ohm systems, it can be used in non-50-ohm systems with proper impedance matching. However, this may require additional circuitry and may affect the device's performance and stability.
