A good PCB layout for the LMH6628MAX/NOPB involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and crosstalk.
The choice of output filter components depends on the specific application requirements. A good starting point is to use the recommended values in the datasheet, and then adjust based on the desired frequency response and impedance matching. It's also important to consider the component tolerances and parasitic effects when selecting the output filter components.
The maximum power dissipation of the LMH6628MAX/NOPB is 1.4W. To ensure it doesn't overheat, it's essential to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to keep the device in a well-ventilated area. Additionally, it's recommended to monitor the device temperature and adjust the power supply voltage and current accordingly to prevent overheating.
Yes, the LMH6628MAX/NOPB can be used in a single-supply configuration. To do so, connect the negative supply pin (V-) to ground, and use a voltage divider to set the output common-mode voltage. Additionally, it's recommended to use a coupling capacitor to block the DC voltage and allow the AC signal to pass through.
To troubleshoot common issues with the LMH6628MAX/NOPB, start by checking the power supply voltage and current, as well as the input and output signal levels. Use an oscilloscope to visualize the signals and identify any anomalies. Check the PCB layout and component values to ensure they match the recommended values in the datasheet. If the issue persists, try swapping the device with a new one or consulting the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6628MAX/NOPB Overview

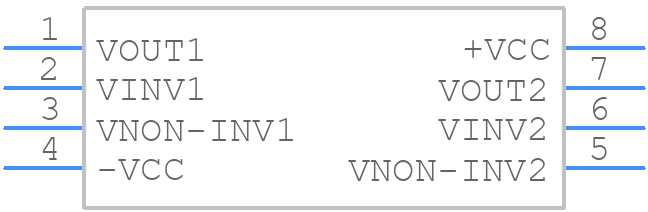

Use the download button to access the LMH6628MAX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH66,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
