A good PCB layout for the LMH6628WG-QML involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended compensation network, use a low-ESR capacitor for the output filter, and keep the input and output impedance matched. Additionally, ensure that the device is operated within its recommended operating conditions and that the PCB layout is optimized for stability.
The maximum power dissipation of the LMH6628WG-QML is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
The LMH6628WG-QML is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's power dissipation and ensure proper thermal management to ensure reliable operation in high-temperature environments.
To troubleshoot oscillations or instability issues, check the PCB layout for any signs of resonance or impedance mismatch. Verify that the compensation network is correctly implemented and that the input and output impedance are matched. Also, ensure that the device is operated within its recommended operating conditions and that the power supply is clean and stable.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6628WG-QML Overview

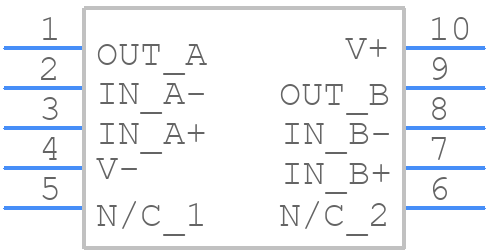

Use the download button to access the LMH6628WG-QML schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH66,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
