The maximum power dissipation of the LMH6647MAX/NOPB is dependent on the ambient temperature and the package thermal resistance. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature, but this can be derated to 0.7W at 85°C ambient temperature.
Yes, the LMH6647MAX/NOPB can be used as a unity gain buffer. However, it's essential to ensure that the input signal is within the common-mode input voltage range and that the output current is within the specified limits to avoid output voltage droop.
For optimal performance, it's recommended to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and keeping the input and output traces separate. Additionally, decoupling capacitors should be placed close to the device pins, and the power supply pins should be bypassed with capacitors to reduce noise and oscillations.
The output capacitor value depends on the specific application and the desired stability margin. A general rule of thumb is to use a capacitor value between 10nF to 100nF. However, it's recommended to consult the datasheet and application notes for more detailed guidance on output capacitor selection.
Yes, the LMH6647MAX/NOPB is designed for high-frequency applications, with a bandwidth of 230MHz and a slew rate of 1300V/μs. However, it's essential to consider the device's noise figure, distortion, and stability at high frequencies to ensure optimal performance in the specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6647MAX/NOPB Overview

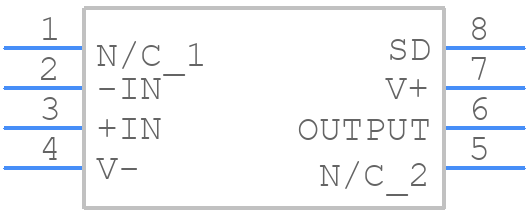

Use the download button to access the LMH6647MAX/NOPB schematic symbol, PCB footprint, and 3D model.
