A good PCB layout for the LMH6655MAX/NOPB involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The choice of output filter components for the LMH6655MAX/NOPB depends on the specific application requirements. A good starting point is to use the recommended component values in the datasheet. However, the optimal values may vary depending on the output load, frequency, and desired attenuation. It's recommended to use a combination of resistors, capacitors, and inductors to achieve the desired filter response.
The maximum power dissipation of the LMH6655MAX/NOPB is approximately 1.4W. To ensure it doesn't overheat, it's recommended to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the device in a well-ventilated area. Additionally, it's important to follow proper PCB design and layout guidelines to minimize thermal resistance and ensure efficient heat dissipation.
The LMH6655MAX/NOPB is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's power dissipation and operating frequency at high temperatures to ensure reliable operation. Additionally, it's important to follow proper thermal management and heat sinking to prevent overheating.
Common issues with the LMH6655MAX/NOPB can often be attributed to poor PCB layout, inadequate decoupling, or incorrect component selection. To troubleshoot, start by verifying the PCB layout and component selection against the datasheet recommendations. Check for oscillations or instability using an oscilloscope, and verify that the input and output signals are within the recommended specifications. If issues persist, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6655MAX/NOPB Overview

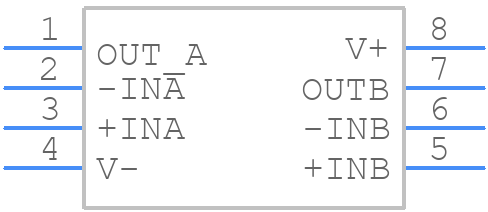

Use the download button to access the LMH6655MAX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH66,
or try a keyword search, such as Operational Amplifiers
