Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
The choice of input and output capacitors depends on the specific application and operating frequency. In general, X7R or X5R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired cutoff frequency and impedance matching requirements.
The maximum power dissipation of the LMH6658MMX/NOPB is dependent on the operating conditions, but it's typically around 1.5W. To ensure it doesn't overheat, make sure to provide adequate heat sinking, such as a thermal pad or heat sink, and ensure good airflow around the device.
While the LMH6658MMX/NOPB is a high-speed amplifier, it's not designed for switching power supply applications. It's recommended to use a dedicated switching regulator IC for such applications, as they are designed to handle high currents and voltage transients.
Oscillations or instability issues can be caused by a variety of factors, including poor PCB layout, inadequate decoupling, or incorrect component values. To troubleshoot, start by checking the PCB layout and ensuring that it follows good high-frequency design practices. Then, verify that the input and output capacitors are properly selected and installed. Finally, check the gain and phase margin of the amplifier to ensure it's stable.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6658MMX/NOPB Overview

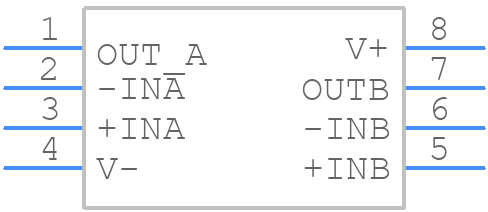

Use the download button to access the LMH6658MMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH66,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
