LMH6682MA - Texas Instruments

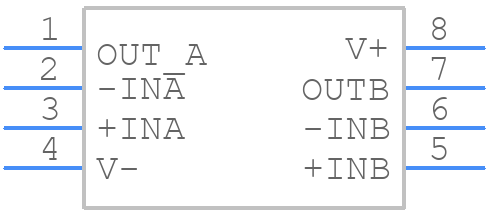

LMH6682MA Details

• Manufacturer Part Number:

  LMH6682MA

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  SOIC-8

• Pin Count:

  8

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  30 µA

• Bandwidth (3dB)-Nom:

  190 MHz

• Bias Current-Max (IIB) @25C:

  20 µA

• Common-mode Reject Ratio-Min:

  75 dB

• Common-mode Reject Ratio-Nom:

  84 dB

• Frequency Compensation:

  YES

• Input Offset Current-Max (IIO):

  0.5 µA

• Input Offset Voltage-Max:

  7000 µV

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e0

• Length:

  4.902 mm

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  NO

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage Limit-Max:

  -6.3 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Functions:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  RAIL

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  1.753 mm

• Slew Rate-Nom:

  940 V/us

• Supply Current-Max:

  11 mA

• Supply Voltage Limit-Max:

  12.6 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Voltage Gain-Min:

  5623.413252

• Wideband:

  NO

• Width:

  3.899 mm
