Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for input and output signals.
The LMH6702JFQMLV requires a specific bias voltage and current to operate optimally. Ensure that the bias voltage is set to the recommended value (typically 5V) and that the bias current is limited to the recommended maximum value (typically 10mA). Also, ensure that the bias circuitry is properly decoupled to prevent noise and oscillations.
The maximum input signal amplitude that the LMH6702JFQMLV can handle is typically limited by the device's input stage and is dependent on the specific application. As a general rule, the input signal amplitude should be limited to 1Vpp or less to prevent distortion and ensure optimal performance.
To minimize noise and oscillations, ensure that the circuit is properly decoupled, use a solid ground plane, and keep the input and output signals away from each other. Also, use a low-noise power supply, and consider adding noise-reducing components such as ferrite beads or RC filters to the circuit.
The typical settling time of the LMH6702JFQMLV is dependent on the specific application and the output load. However, as a general rule, the settling time is typically on the order of 10-20ns for a 1V output step.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LMH6702JFQMLV Overview

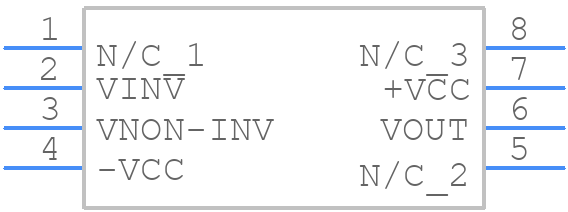

Use the download button to access the LMH6702JFQMLV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH67,
or try a keyword search, such as Operational Amplifiers
