Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for input and output signals.
Proper biasing is critical for the LMH6702WG-QMLV. Ensure that the VCC pin is connected to a stable 5V power supply, and the VEE pin is connected to a stable -5V power supply. Also, make sure to decouple the power supplies with 0.1uF capacitors to reduce noise and ensure stable operation.
The maximum input signal amplitude that the LMH6702WG-QMLV can handle is typically limited by the device's output voltage swing. For the LMH6702WG-QMLV, the maximum output voltage swing is approximately 3.5Vpp, so the maximum input signal amplitude should be limited to around 2Vpp to ensure linear operation.
To reduce noise and distortion in the LMH6702WG-QMLV output signal, ensure that the input signal is properly terminated, use a low-noise power supply, and decouple the power supplies with 0.1uF capacitors. Additionally, consider using a output filter, such as a low-pass filter, to remove high-frequency noise and distortion.
Yes, the LMH6702WG-QMLV is a QML-V (Qualified Manufacturers List - Class V) device, which means it is qualified for use in high-reliability applications, such as aerospace and defense. However, it's still important to follow proper design and testing procedures to ensure the device meets the specific requirements of the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6702WG-QMLV Overview

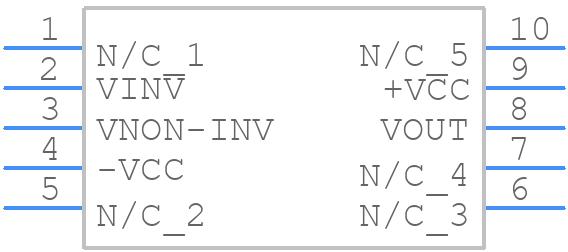

Use the download button to access the LMH6702WG-QMLV schematic symbol, PCB footprint, and 3D model.
