A good PCB layout for the LMH6715MAX/NOPB involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The choice of output filter components depends on the specific application requirements. A good starting point is to use the recommended values in the datasheet, and then adjust based on the desired frequency response and impedance matching. It's also important to consider the component tolerances and parasitic effects.
The maximum power dissipation of the LMH6715MAX/NOPB is approximately 1.4W. To ensure it doesn't overheat, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the device in a well-ventilated area. Additionally, it's recommended to monitor the device temperature and adjust the power supply voltage and current accordingly.
The LMH6715MAX/NOPB is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to derate the device's power dissipation and adjust the operating conditions accordingly. Additionally, it's recommended to consult the datasheet and application notes for specific guidance on high-temperature operation.
To troubleshoot common issues with the LMH6715MAX/NOPB, start by checking the power supply voltage and current, as well as the input and output signals. Verify that the device is properly biased and that the output filter components are correctly selected. Use an oscilloscope to visualize the signals and identify any anomalies. Consult the datasheet and application notes for specific troubleshooting guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6715MAX/NOPB Overview

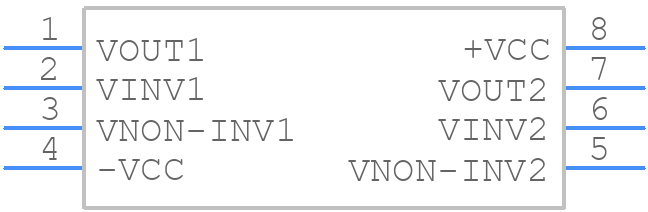

Use the download button to access the LMH6715MAX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH67,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
