Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
The choice of input and output capacitors depends on the specific application and operating frequency. In general, X7R or X5R ceramic capacitors with low ESR (Equivalent Series Resistance) are recommended. The datasheet provides some guidance on capacitor selection, but it's also important to consider factors such as voltage rating, temperature range, and physical size.
The maximum power dissipation of the LMH6722QSD/NOPB is dependent on the operating conditions, such as supply voltage, output current, and ambient temperature. To ensure the device doesn't overheat, it's essential to provide adequate heat sinking, such as a thermal pad or heat sink, and to follow the recommended thermal design guidelines in the datasheet.
Yes, the LMH6722QSD/NOPB can be used in switching regulator applications, but it's essential to ensure that the device is operated within its recommended operating conditions and that the switching frequency is within the device's bandwidth. Additionally, proper filtering and decoupling are crucial to prevent noise and ringing.
To troubleshoot common issues with the LMH6722QSD/NOPB, it's essential to follow a systematic approach, such as checking the power supply, input and output signals, and PCB layout. Texas Instruments also provides application notes and technical support resources to help troubleshoot and resolve issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6722QSD/NOPB Overview

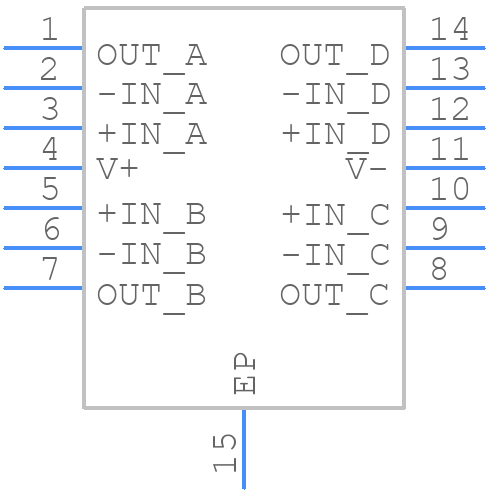

Use the download button to access the LMH6722QSD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH67,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
