Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
The LMH6738MQX/NOPB requires a specific bias voltage and current to operate optimally. Ensure that the bias voltage is within the recommended range (typically 5V to 12V) and that the bias current is limited to the recommended maximum (typically 10mA). Also, ensure that the bias circuitry is properly decoupled to prevent noise and oscillations.
The maximum input signal amplitude that the LMH6738MQX/NOPB can handle is typically limited by the device's input voltage range and the desired output signal quality. As a general rule, the input signal amplitude should be limited to 2Vpp or less to ensure optimal performance and prevent distortion.
To reduce noise and distortion in the output signal, ensure that the input signal is properly filtered and conditioned, use a low-noise power supply, and minimize the length of the output traces. Additionally, consider using a output filter or a reconstruction filter to further reduce noise and distortion.
The thermal derating of the LMH6738MQX/NOPB is typically specified in the datasheet and is dependent on the ambient temperature and the device's power dissipation. As the device temperature increases, the performance may degrade, and the device may enter thermal shutdown. Ensure that the device is properly heat-sinked and that the ambient temperature is within the recommended range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6738MQX/NOPB Overview

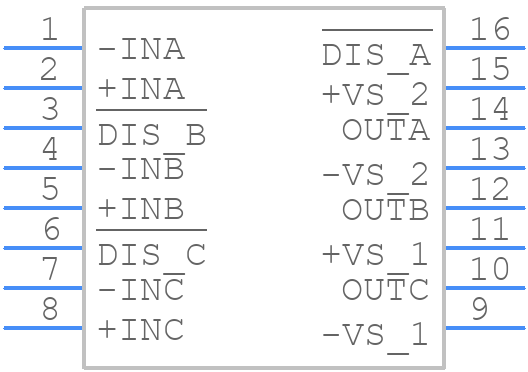

Use the download button to access the LMH6738MQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH67,
or try a keyword search, such as Operational Amplifiers
