Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for input and output signals.
The gain and bandwidth of the LMH6739MQX/NOPB can be optimized by adjusting the values of the external resistors and capacitors. TI provides a gain-bandwidth calculator tool to help with this process. Additionally, the datasheet provides guidelines for selecting the optimal component values based on the desired gain and bandwidth.
The maximum power dissipation of the LMH6739MQX/NOPB is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to perform thermal analysis and simulation to ensure the device operates within safe operating conditions.
The LMH6739MQX/NOPB is a sensitive device and requires proper ESD protection during handling and assembly. TI recommends following standard ESD protection procedures, such as using ESD-safe workstations, wrist straps, and packaging materials. Additionally, the device should be handled by the package and not the pins to prevent damage.
The recommended operating voltage range for the LMH6739MQX/NOPB is 3.3V to 5V. However, the device can operate down to 2.7V with reduced performance. It's recommended to consult the datasheet for specific voltage-dependent performance characteristics.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6739MQX/NOPB Overview

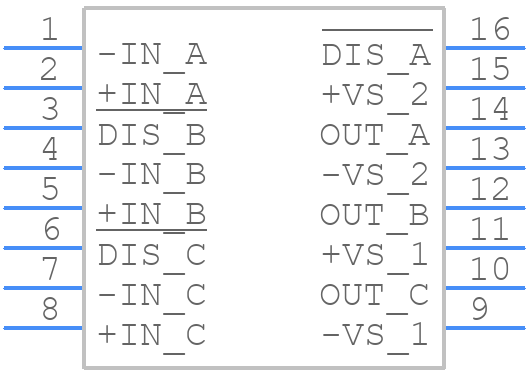

Use the download button to access the LMH6739MQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH67,
or try a keyword search, such as Buffer Amplifiers
