LMK00101SQE/NOPB - Texas Instruments

Description: Ultra-low Jitter LVCMOS Fanout Buffer/Level Translator with Universal Input

Download LMK00101SQE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

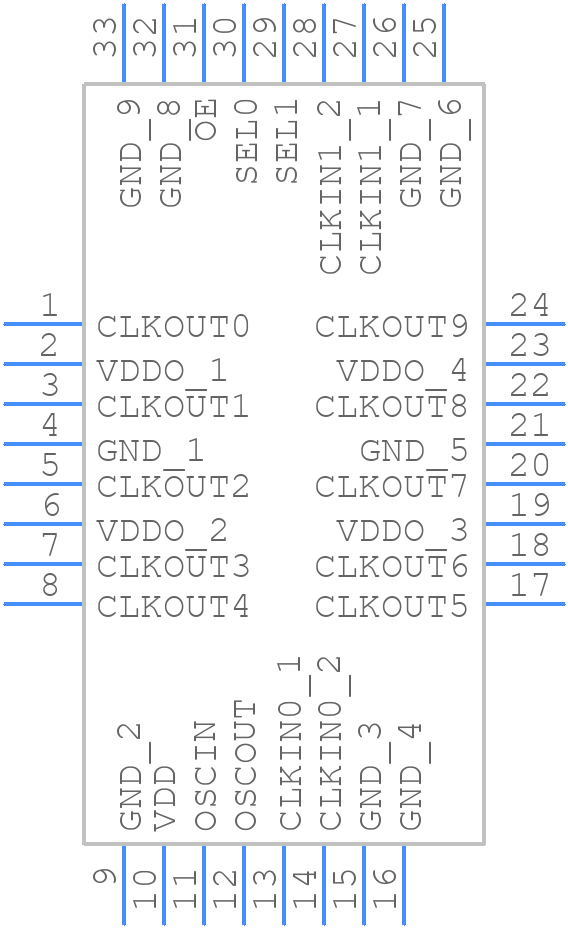

LMK00101SQE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMK00101SQE/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LMK00101SQE/NOPB
click to zoom
3D Models
LMK00101SQE/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - LMK00101SQE/NOPB
click to zoom

LMK00101SQE/NOPB Details

  • Manufacturer Part Number:

    LMK00101SQE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LCC-32

  • Pin Count:

    32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    101

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Load Capacitance (CL):

    10 pF

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    25 mA

  • Prop. Delay@Nom-Sup:

    2.8 ns

  • Propagation Delay (tpd):

    2.8 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.025 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • fmax-Min:

    200 MHz

LMK00101SQE/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMK00101SQE/NOPB involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper bypassing, place a 10uF ceramic capacitor between the VCC pin and the GND pin, and a 100nF ceramic capacitor between the VCC pin and the GND pin. These capacitors should be placed as close to the device as possible.
  • The LMK00101SQE/NOPB has an operating temperature range of -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
  • While the LMK00101SQE/NOPB is specified for operation up to 100 MHz, it can be used in designs that require higher clock frequencies. However, the device's performance and jitter characteristics may degrade at higher frequencies. It's recommended to consult with Texas Instruments or perform thorough testing to ensure the device meets the design requirements.
  • To troubleshoot issues with the LMK00101SQE/NOPB, start by verifying the PCB layout and ensuring that the device is properly bypassed. Check the power supply voltage and noise levels, and ensure that the input clock signal is clean and stable. Use oscilloscopes or spectrum analyzers to measure the output signal and identify any issues. Consult the datasheet and application notes for more information on troubleshooting and optimization techniques.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMK00101SQE/NOPB Overview

Use the download button to access the LMK00101SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK00, or try a keyword search, such as Clock Drivers
