Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for clock signals.
The LMK00308SQX/NOPB requires a 3.3V power supply, and it's recommended to use a low-ESR capacitor (e.g., 0.1uF) for power supply decoupling. Additionally, it's recommended to use a separate power plane for the clock circuitry to minimize noise coupling.
The LMK00308SQX/NOPB can support clock frequencies up to 3072 MHz, but the maximum frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and perform simulations to ensure the device can meet the required frequency specifications.
The LMK00308SQX/NOPB has a programmable clock output frequency, which can be configured using the device's register settings. The specific configuration will depend on the desired output frequency and the input clock frequency. Consult the datasheet and the device's programming guide for more information.
The typical power consumption of the LMK00308SQX/NOPB is around 350mW, but this can vary depending on the specific application, clock frequency, and output load. Consult the datasheet for more information on power consumption and thermal considerations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMK00308SQX/NOPB Overview

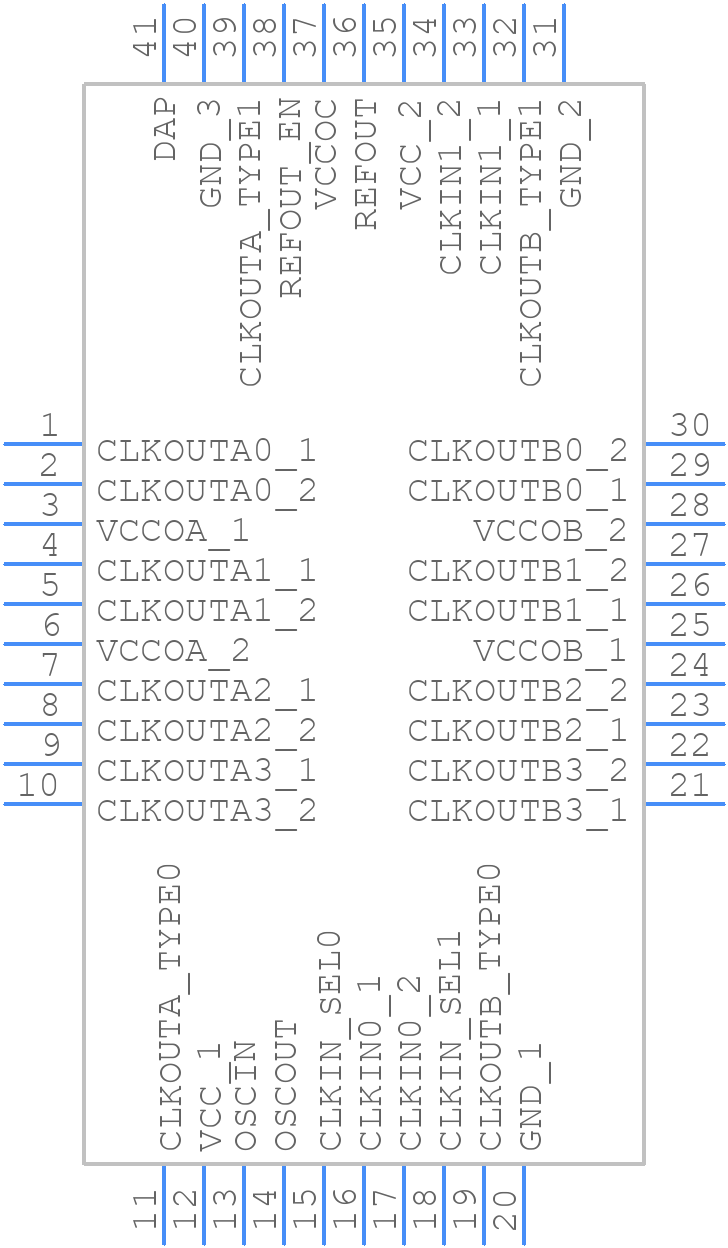

Use the download button to access the LMK00308SQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK00,
or try a keyword search, such as Clock Drivers
