LMK00725PWR - Texas Instruments

Description: Clock Buffer 1-to-5 Diff-to-3.3V LVPECL Fanout Buffer

Download LMK00725PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

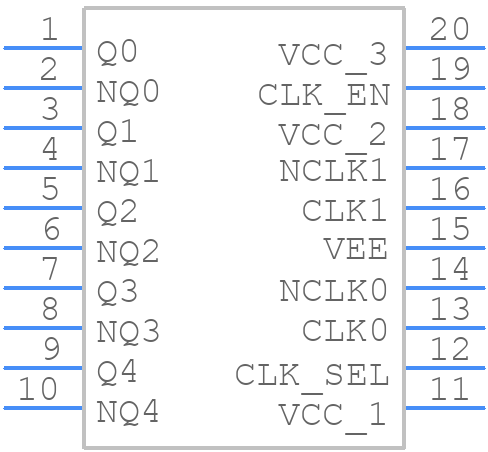

LMK00725PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMK00725PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G20)
click to zoom
3D Models
LMK00725PWR - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G20)
click to zoom

LMK00725PWR Details

  • Manufacturer Part Number:

    LMK00725PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    725

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    60 mA

  • Prop. Delay@Nom-Sup:

    0.37 ns

  • Propagation Delay (tpd):

    0.37 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.035 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    650 MHz

LMK00725PWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLUU444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The LMK00725PWR has a resistive divider network that sets the output voltage. The datasheet provides a formula to calculate the required resistor values for a specific output voltage. Additionally, Texas Instruments offers a voltage calculator tool on their website to simplify the process.
  • While the datasheet specifies a maximum input voltage of 5.5V, it's essential to note that the device can handle up to 6V for short durations (less than 100ms) during power-up or power-down transitions. However, sustained operation above 5.5V is not recommended.
  • The LMK00725PWR has a thermal pad that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. The datasheet provides thermal resistance values, and Texas Instruments recommends using thermal simulation tools or consulting with a thermal expert to ensure the device meets specific thermal requirements.
  • Yes, the LMK00725PWR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is manufactured using automotive-grade processes. However, it's essential to consult with Texas Instruments and follow their guidelines for using the device in these applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMK00725PWR Overview

Use the download button to access the LMK00725PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK00, or try a keyword search, such as Clock Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
