A good PCB layout for the LMK01010ISQE/NOPB involves separating the analog and digital grounds, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper bypassing, place a 10uF capacitor between the VCC pin and the GND pin, and a 0.1uF capacitor between the VCC pin and the GND pin. Additionally, use a 1uF capacitor between the VCCA pin and the GND pin, and a 0.1uF capacitor between the VCCA pin and the GND pin.
The LMK01010ISQE/NOPB has an operating temperature range of -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
To troubleshoot issues with the LMK01010ISQE/NOPB, start by verifying the power supply voltage and ensuring it's within the recommended range. Check the PCB layout for any noise coupling or signal integrity issues. Use an oscilloscope to measure the output signal and check for any signs of jitter or phase noise. If the issue persists, consult the Texas Instruments support team for further assistance.
Yes, the LMK01010ISQE/NOPB can be used in a non-50Ω system. To impedance match the output, use a resistive divider network or a transformer to match the output impedance to the load impedance. Consult the Texas Instruments application notes for more information on impedance matching.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMK01010ISQE/NOPB Overview

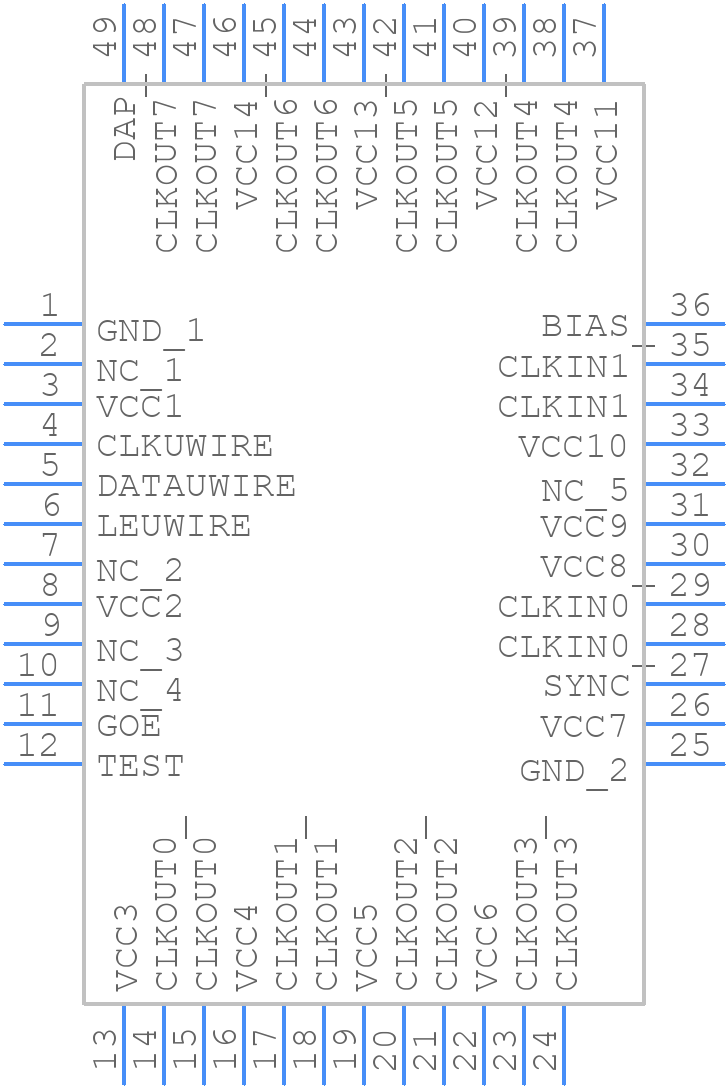

Use the download button to access the LMK01010ISQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK01,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
