Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the general guidelines for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for clock signals.
Optimizing performance requires understanding the specific requirements of your application, such as frequency range, output power, and noise tolerance. TI provides application notes and simulation models to help with this process. Additionally, consider consulting with TI's technical support team or a qualified engineer with experience in high-frequency design.
The LMK01801BISQX/NOPB has a maximum junction temperature of 150°C. Ensure proper thermal management by providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. TI provides thermal resistance data in the datasheet to help with thermal design.
The LMK01801BISQX/NOPB is not specifically designed for radiation-hardened or high-reliability applications. However, TI offers other products that are designed for these applications. Consult with TI's technical support team to determine the best solution for your specific requirements.
TI provides troubleshooting guides and application notes to help identify and resolve common issues. Additionally, consider using oscilloscopes, spectrum analyzers, and other test equipment to debug the circuit. If issues persist, consult with TI's technical support team or a qualified engineer with experience in high-frequency design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMK01801BISQX/NOPB Overview

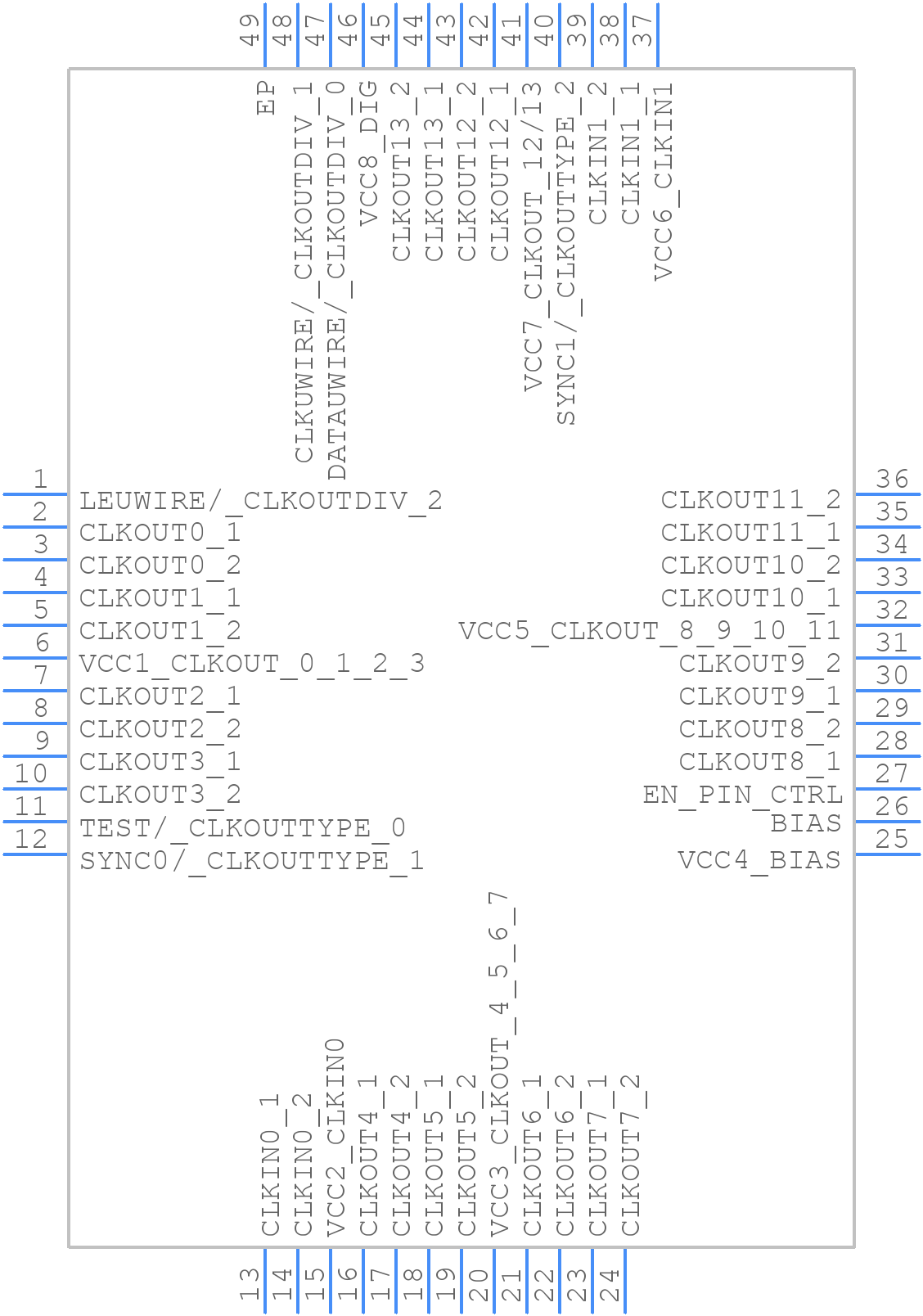

Use the download button to access the LMK01801BISQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK01,
or try a keyword search, such as Clock Drivers
