A good PCB layout for the LMK02000ISQ/NOPB involves keeping the clock input traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the crystal oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power and decoupling, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device's power pins, and use a 10nF capacitor between the VCC and GND pins. Also, ensure that the power supply can provide the required current.
When selecting a crystal oscillator for the LMK02000ISQ/NOPB, consider the frequency range, load capacitance, and equivalent series resistance (ESR). Choose a crystal with a frequency range that matches the device's operating frequency, and ensure the load capacitance is within the recommended range (typically 10pF to 20pF). Also, select a crystal with a low ESR to minimize startup time and ensure reliable operation.
To troubleshoot issues with the LMK02000ISQ/NOPB, use a high-speed oscilloscope to measure the clock signal and check for signal integrity, jitter, and noise. Verify that the power supply is clean and stable, and check the PCB layout for any signal integrity issues. Also, ensure that the device is properly configured and that the clock signal is properly terminated.
The LMK02000ISQ/NOPB has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, ensure good thermal conduction between the device and the PCB, and use a heat sink or thermal pad if necessary. Also, follow the recommended operating conditions and avoid exceeding the maximum junction temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMK02000ISQ/NOPB Overview

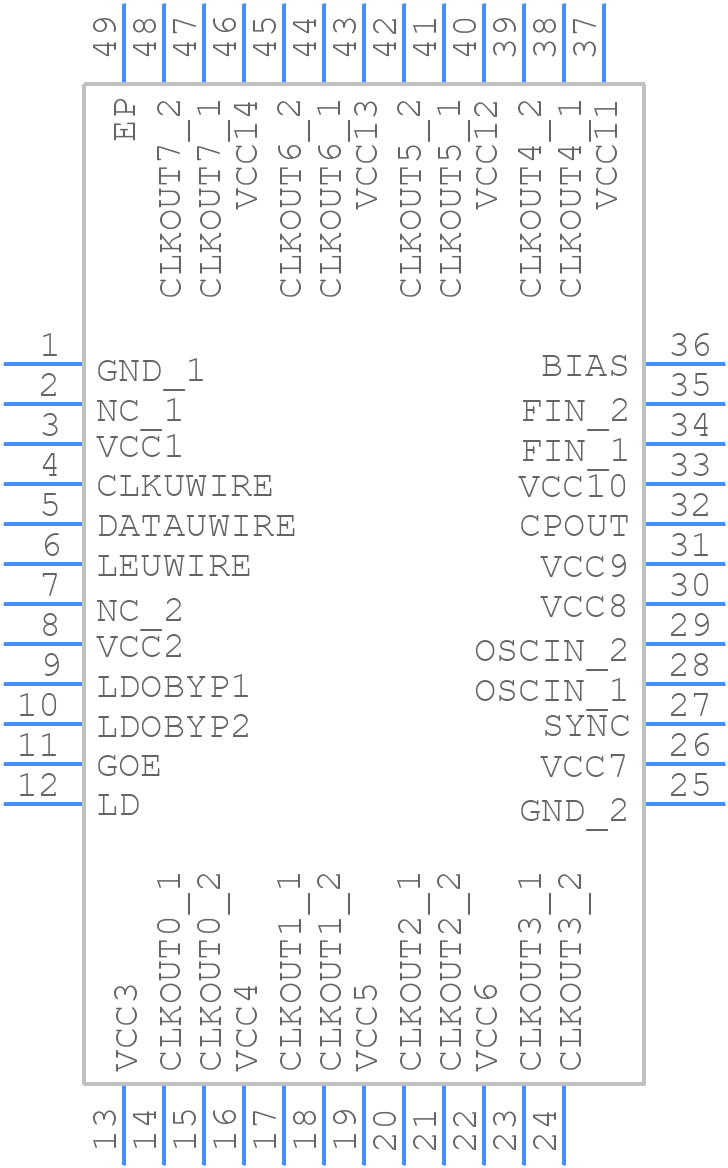

Use the download button to access the LMK02000ISQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK02,
or try a keyword search, such as Clock Generators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
