A good PCB layout for the LMK03001CISQ/NOPB involves keeping the clock input traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the crystal oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated ground plane to reduce noise and EMI.
To ensure proper power and decoupling, use a low-ESR capacitor (e.g., 0.1 μF) between VDD and GND, and a larger capacitor (e.g., 10 μF) between VDD and GND for bulk decoupling. Place these capacitors as close to the device as possible. Also, ensure the power supply is clean and well-regulated.
When selecting a crystal oscillator for the LMK03001CISQ/NOPB, consider the frequency range, load capacitance, and equivalent series resistance (ESR). Choose a crystal with a frequency range that matches the desired output frequency, and ensure the load capacitance is within the recommended range (15 pF to 30 pF). A lower ESR crystal is preferred for better jitter performance.
To configure the LMK03001CISQ/NOPB for a specific output frequency, use the device's internal PLL and divider settings. Consult the datasheet for the specific register settings and equations to calculate the required values. You can also use Texas Instruments' Clock Design Tool to simplify the process.
The LMK03001CISQ/NOPB has a maximum junction temperature (TJ) of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device will be operating in a high-temperature environment. Also, follow proper PCB design and layout practices to minimize thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMK03001CISQ/NOPB Overview

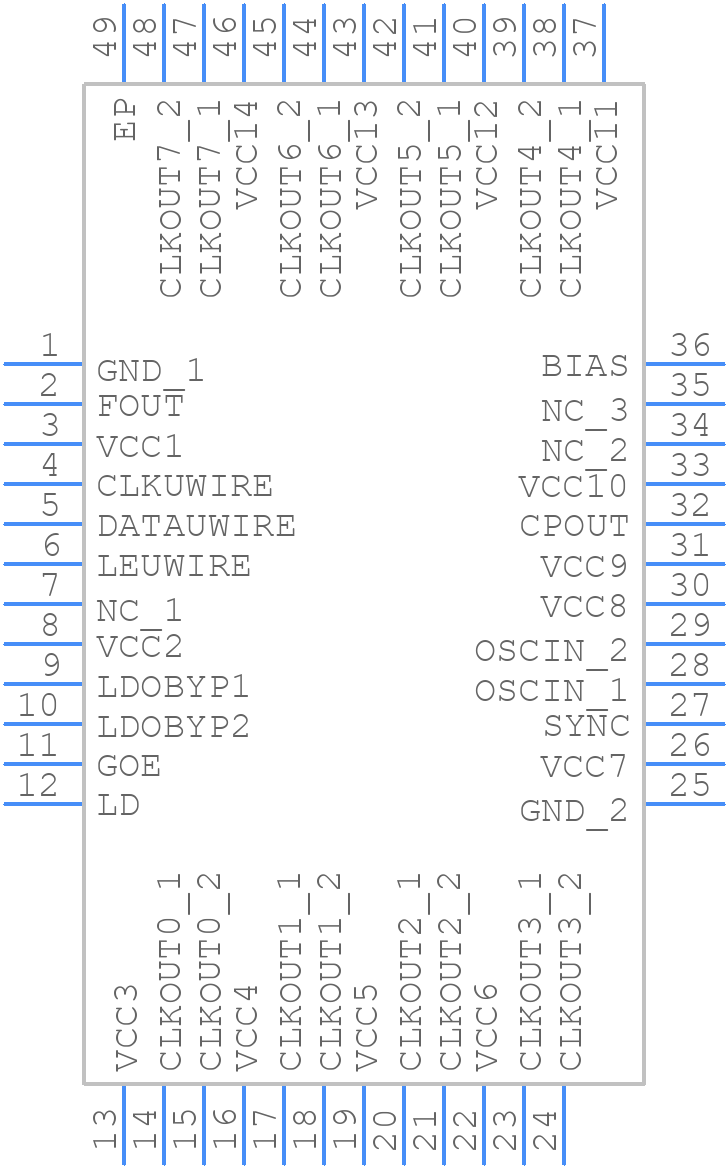

Use the download button to access the LMK03001CISQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK03,
or try a keyword search, such as Clock Generators
