A good PCB layout for the LMK03033 involves keeping the clock input traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the crystal oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated ground plane and to avoid routing signals under the device.
To ensure proper power and decoupling, use a low-ESR capacitor (e.g., 0.1 μF) between VCC and GND, and a 10 μF capacitor between VCC and GND for bulk decoupling. Also, ensure that the power supply is clean and stable, and that the device is operated within the recommended voltage range (1.8V to 3.6V).
For optimal performance, use a high-quality crystal oscillator with a frequency range of 10 MHz to 40 MHz, and a load capacitance of 10 pF to 20 pF. The crystal oscillator should be connected between the XIN and XOUT pins, and the recommended crystal oscillator configuration is a series resonant circuit with a 1:1 turns ratio.
To troubleshoot issues with the LMK03033, start by verifying the power supply voltage and ensuring that it is within the recommended range. Check the crystal oscillator configuration and ensure that it is properly connected and configured. Use an oscilloscope to verify the clock signal and check for any signs of instability or noise. If the issue persists, try replacing the crystal oscillator or checking for any PCB layout issues.
The LMK03033 is rated for operation over a temperature range of -40°C to 85°C. To ensure reliable operation, ensure that the device is operated within this range, and that the PCB is designed to minimize thermal gradients. Use thermal vias and thermal pads to dissipate heat, and consider using a heat sink or thermal interface material if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMK03033CISQE/NOPB Overview

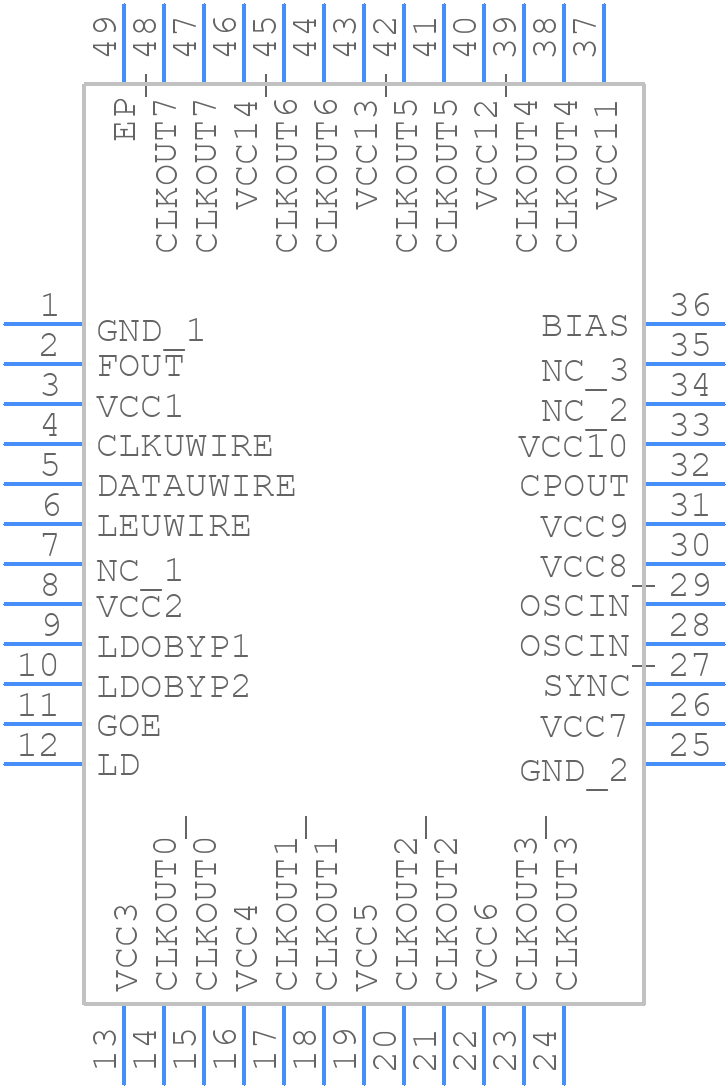

Use the download button to access the LMK03033CISQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK03,
or try a keyword search, such as Clock Generators
