Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for clock signals.
The LMK04000BISQ/NOPB requires a clean and stable power supply. Ensure that the power supply rails are well-decoupled with a combination of ceramic and electrolytic capacitors, and that the device is powered from a low-noise source. Additionally, follow the recommended power-up and power-down sequencing in the datasheet.
The LMK04000BISQ/NOPB can generate clock frequencies up to 4.2 GHz, but the maximum achievable frequency may depend on the specific application, PCB layout, and output load. It's recommended to consult with Texas Instruments support or perform simulations to determine the maximum achievable frequency for a specific design.
The LMK04000BISQ/NOPB can be configured using a combination of pin settings and register programming. Consult the datasheet and programming guide for specific instructions on how to configure the device for a desired clock output frequency.
The typical power consumption of the LMK04000BISQ/NOPB depends on the specific configuration and operating frequency. According to the datasheet, the typical power consumption is around 1.2 W at 3.3 V and 2.5 GHz output frequency. However, this value may vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMK04000BISQ/NOPB Overview

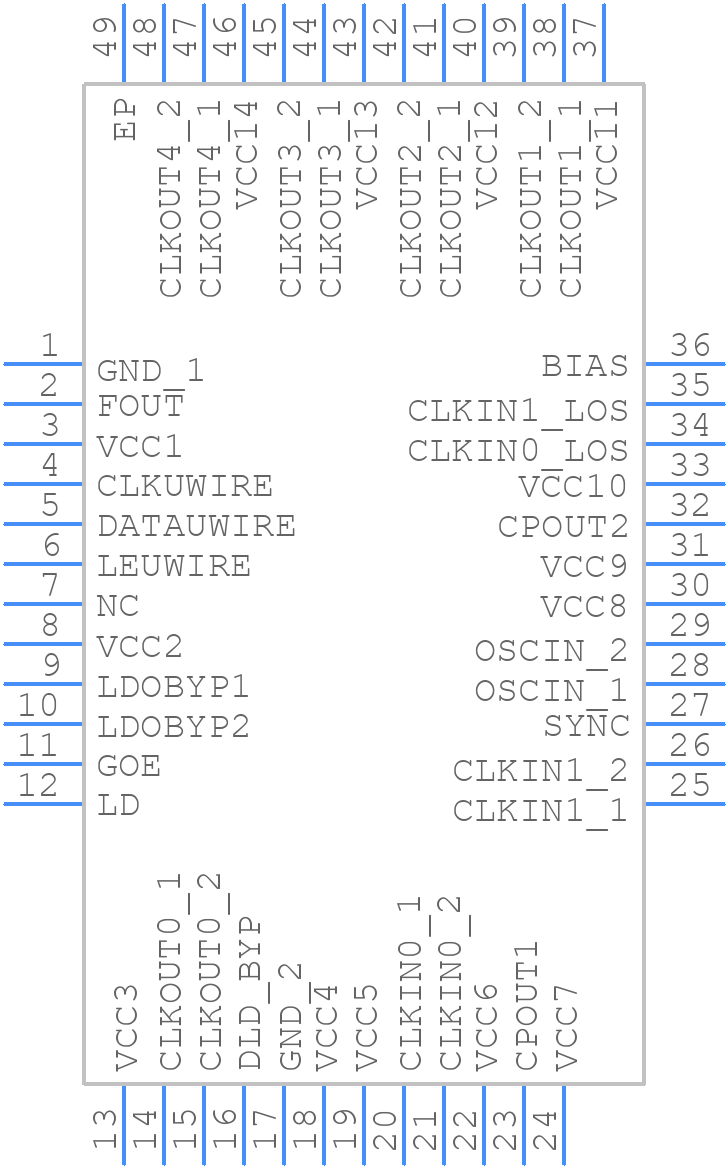

Use the download button to access the LMK04000BISQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK04,
or try a keyword search, such as Clock Drivers
