Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for clock signals.
Proper power supply decoupling is crucial for the LMK04033BISQE/NOPB. Use a low-ESR capacitor (e.g., 100nF) close to the device's power pins, and consider adding additional bulk capacitors (e.g., 10uF) near the power source. Ensure the power supply is clean and well-regulated, and consider using a power supply filter or ferrite bead to reduce noise.
The LMK04033BISQE/NOPB can support clock frequencies up to 3.2 GHz, but the actual maximum frequency depends on the specific application, PCB layout, and signal quality. It's recommended to consult the datasheet and perform simulations or testing to determine the maximum achievable frequency for a specific design.
The LMK04033BISQE/NOPB has a programmable PLL that allows for flexible clock frequency synthesis. Use the device's register map and programming guide to configure the PLL for the desired output frequency. You can also use Texas Instruments' Clock Design Tool or other third-party tools to simplify the configuration process.
The LMK04033BISQE/NOPB has a maximum junction temperature of 150°C. Ensure proper heat dissipation by using a heat sink or thermal pad, and follow good thermal design practices such as keeping the device away from heat sources, using thermal vias, and providing adequate airflow.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMK04033BISQE/NOPB Overview

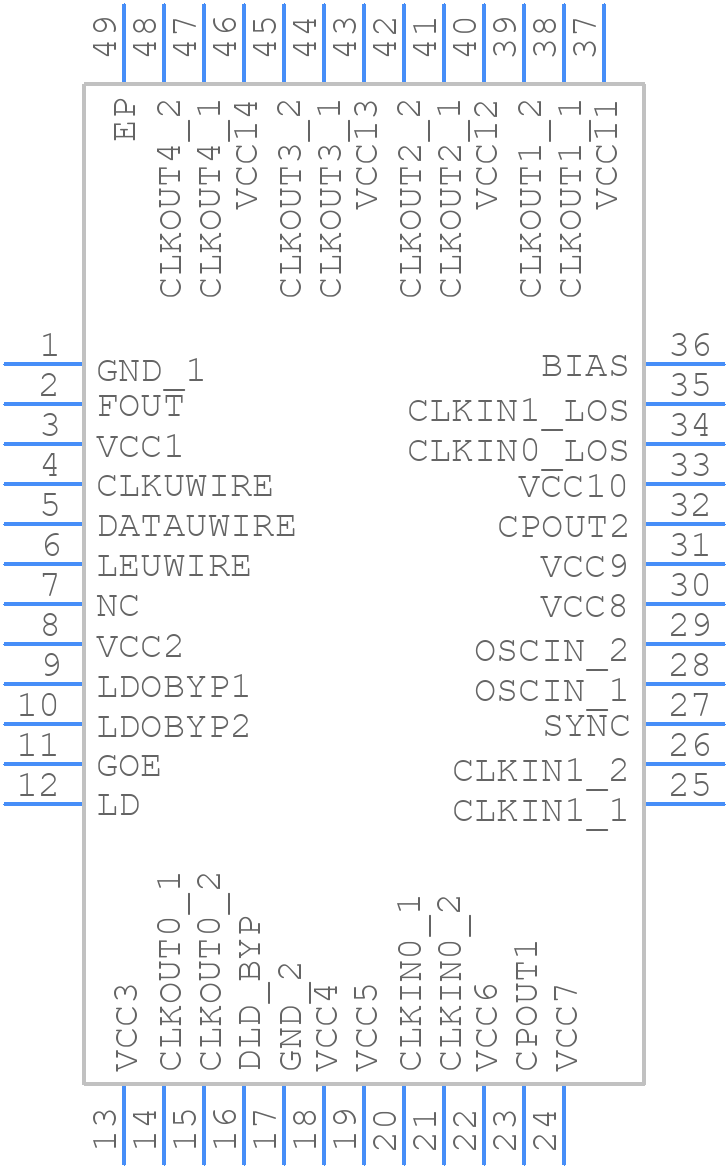

Use the download button to access the LMK04033BISQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK04,
or try a keyword search, such as Clock Drivers
