Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for clock signals.
The LMK04101SQE/NOPB requires a clean and stable power supply. Ensure that the power supply voltage is within the recommended range, and use adequate decoupling capacitors (e.g., 100nF and 10uF) close to the device to filter out noise and ripple.
The LMK04101SQE/NOPB can support clock frequencies up to 4100 MHz, but the maximum frequency may vary depending on the specific application and output load. It's recommended to consult the datasheet and perform simulations to ensure the device can meet the required frequency specifications.
The LMK04101SQE/NOPB has a programmable PLL that allows for flexible clock frequency configuration. Use the device's register map and programming guide to set the desired output frequency, and consult the datasheet for specific configuration examples.
The typical power consumption of the LMK04101SQE/NOPB varies depending on the operating frequency, output load, and other factors. Consult the datasheet for typical power consumption values, and perform simulations or measurements to determine the actual power consumption in your specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMK04101SQE/NOPB Overview

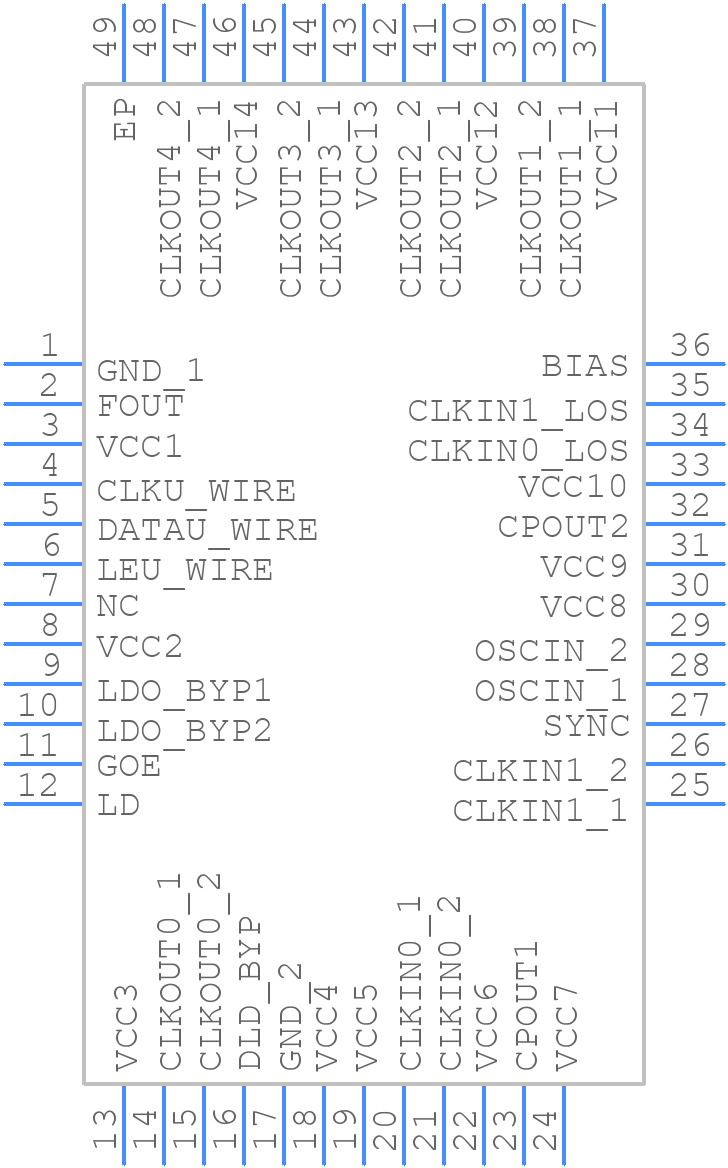

Use the download button to access the LMK04101SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK04,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
