LMK05028RGCR - Texas Instruments

Description: Clock Generators & Support Products Network Clock Synchronizer 64-VQFN -40 to 85

Download LMK05028RGCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LMK05028RGCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

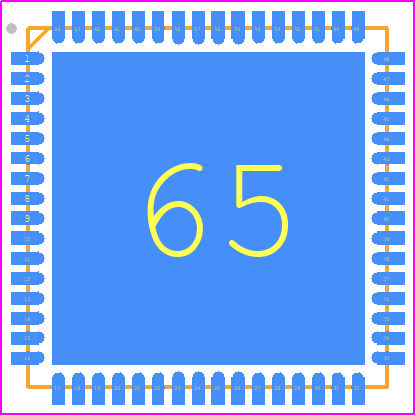

LMK05028RGCR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGC0064J_1
click to zoom
3D Models
LMK05028RGCR - Texas Instruments - 3D model - Quad Flat No-Lead - RGC0064J_1
click to zoom

LMK05028RGCR Details

  • Manufacturer Part Number:

    LMK05028RGCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-02-18

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e4

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    750 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    750 MHz

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.6 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

LMK05028RGCR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the clock signal traces as short as possible and away from noisy signals. Additionally, use a common mode filter or a ferrite bead to filter out high-frequency noise.
  • Use the TI Clock Design Tool or the LMK05028RGCR evaluation module to configure the device for a specific clock frequency. The tool allows you to select the desired frequency, and generates the necessary register settings and configuration files.
  • The LMK05028RGCR can support clock frequencies up to 3072 MHz, but the maximum frequency may vary depending on the specific application and PCB layout.
  • Use the SYNC_IN and SYNC_OUT pins to synchronize multiple LMK05028RGCR devices. The SYNC_IN pin can be connected to an external clock source, and the SYNC_OUT pin can be connected to the SYNC_IN pin of another LMK05028RGCR device.
  • The power consumption of the LMK05028RGCR varies depending on the clock frequency and output configuration. Typically, the device consumes around 350-400 mW at 100 MHz, but this can increase to 1-2 W at higher frequencies.
