A good PCB layout for the LMK05318BRGZR involves separating the analog and digital sections, using a solid ground plane, and placing the device close to the power supply. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
The LMK05318BRGZR can be configured using the SPI interface. The device has a set of registers that control the clock frequency, output format, and other parameters. The specific configuration will depend on the application requirements, but the datasheet provides a detailed description of the registers and their functions.
The maximum power consumption of the LMK05318BRGZR is approximately 350 mW. To reduce power consumption, you can use the device's power-down mode, reduce the clock frequency, or use the device's low-power modes. Additionally, optimizing the PCB layout and using a low-dropout regulator can also help to reduce power consumption.
To troubleshoot issues with the LMK05318BRGZR, you can use a combination of measurement tools such as oscilloscopes, spectrum analyzers, and logic analyzers. You can also use the device's built-in diagnostic features, such as the clock monitor output, to help identify the source of the issue.
The LMK05318BRGZR is specified to operate up to 85°C, but it can be used in higher temperature environments with some limitations. However, the device's performance and accuracy may degrade at higher temperatures, and the maximum operating temperature should be derated accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMK05318BRGZR Overview

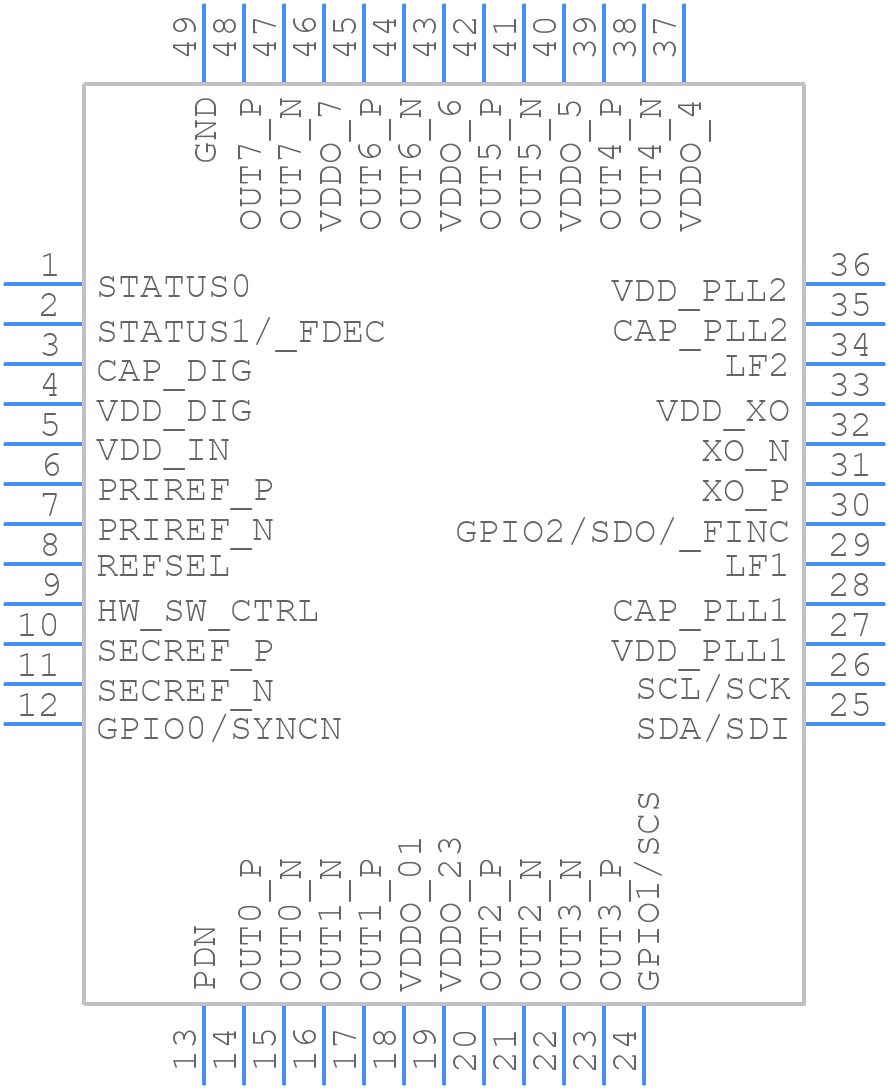

Use the download button to access the LMK05318BRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK05,
or try a keyword search, such as Clock Generators
