LMK05318RGZT - Texas Instruments

Description: Ultra-low jitter single channel network synchronizer clock with BAW

Download LMK05318RGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

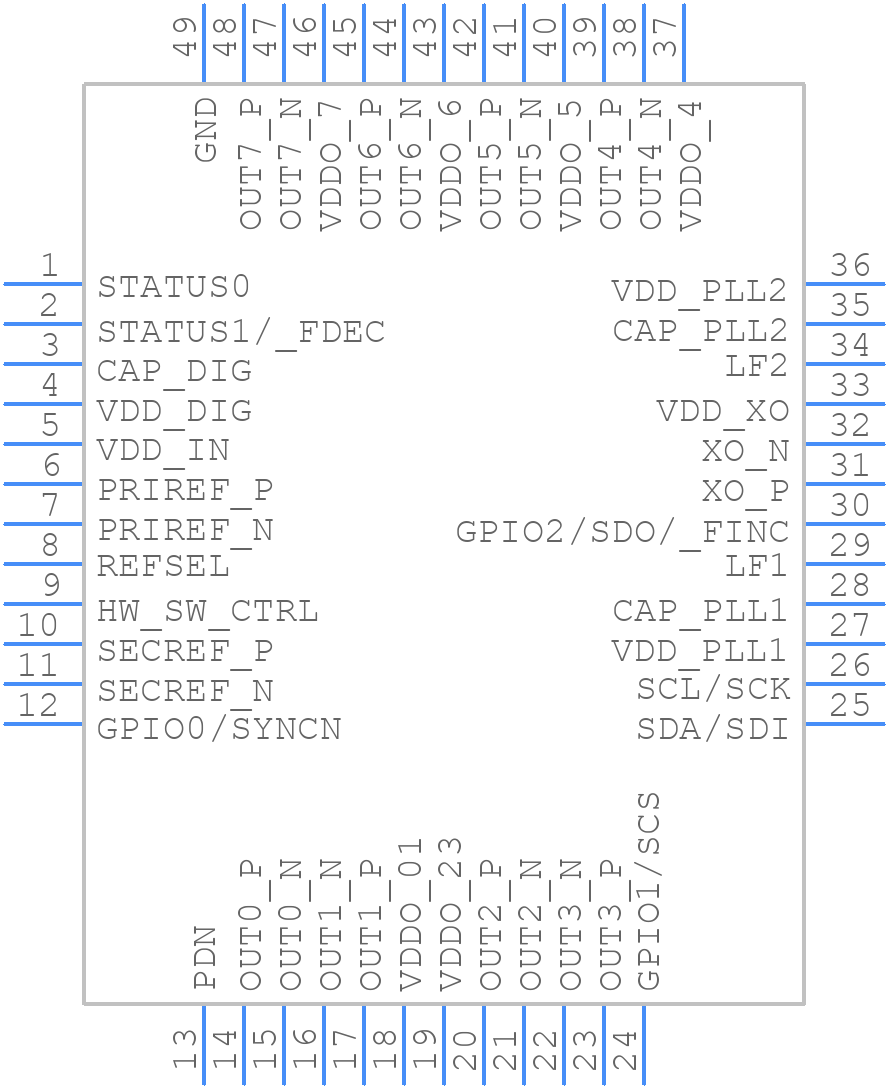

LMK05318RGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMK05318RGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048A
click to zoom
3D Models
LMK05318RGZT - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048A
click to zoom

LMK05318RGZT Details

  • Manufacturer Part Number:

    LMK05318RGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-12-14

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    800 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    100 MHz

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.465 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

LMK05318RGZT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital sections separate. Additionally, use a common mode filter and decouple the power supply lines.
  • Use the TI Clock Design Tool or the LMK05318RGZT evaluation module to configure the device. The tool allows you to select the input frequency, output frequency, and output format, and generates the necessary register settings.
  • The maximum output current of the LMK05318RGZT is 15mA. To ensure that it can drive your load, calculate the output current required by your load and ensure that it is within the device's capabilities. You may need to add external buffering or amplification if the load requires more current.
  • Use the SYNC_IN and SYNC_OUT pins to synchronize multiple devices. The SYNC_IN pin accepts a synchronization signal from a master device, and the SYNC_OUT pin outputs a synchronized signal to slave devices.
  • Power up the device in the following sequence: VDD, then VDDA, then VDDO. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock input signal.
