- Stock & Prices $ Price & Stock for LMK1D1208RHDT
- Part Number LMK1D1208RHDT
- Manufacturer Texas Instruments
- Pin Count 29
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - RHD0028B
- Released Date Mar 3, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LMK1D1208RHDT Details
-
Manufacturer Part Number:
LMK1D1208RHDT
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
LCC-28
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Family:
LMK
LMK1D1208RHDT Frequently Asked Questions (FAQs)
-
A good PCB layout for the LMK1D1208RHDT involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
-
Proper bypassing involves placing a 0.1uF ceramic capacitor between the VDD and GND pins, and a 10uF capacitor between the VDD and GND pins, both as close to the device as possible. This helps to filter out noise and ensure stable operation.
-
The LMK1D1208RHDT can operate up to 1208 MHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout. TI recommends following the guidelines in the datasheet and application notes for optimal performance.
-
The LMK1D1208RHDT can be programmed using the SPI interface. TI provides a programming guide and software tools to help configure the device for specific frequencies and applications.
-
The power consumption of the LMK1D1208RHDT depends on the frequency of operation and the output load. Typically, the device consumes around 30-40mA at 1.8V, but this can vary depending on the specific application. TI provides power consumption estimates in the datasheet.
Trust Checks
Community Provided
System Verified
Community Approved
LMK1D1208RHDT Overview

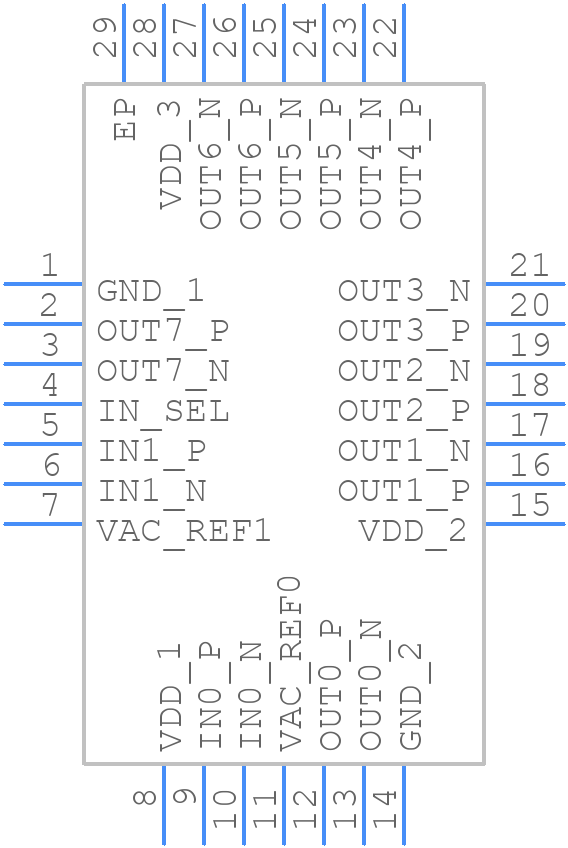

Use the download button to access the LMK1D1208RHDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK1D,
or try a keyword search, such as Clock Drivers
