LMK1D1216RGZR - Texas Instruments

Description: Clock Buffer 16-channel output 1.8-V, 2.5-V, and 3.3-V LVDS buffer 48-VQFN -40 to 105

Download LMK1D1216RGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

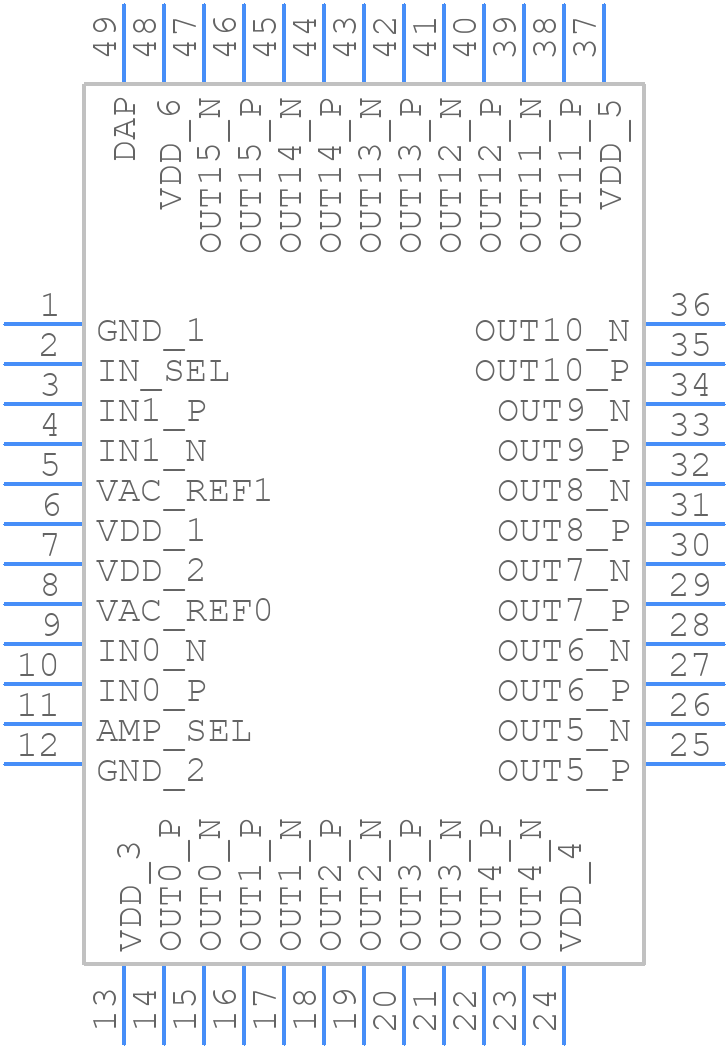

Symbol
LMK1D1216RGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMK1D1216RGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048B
click to zoom
3D Models
LMK1D1216RGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048B
click to zoom

LMK1D1216RGZR Details

  • Manufacturer Part Number:

    LMK1D1216RGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    LMK

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of True Outputs:

    30

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    150 mA

  • Prop. Delay@Nom-Sup:

    0.575 ns

  • Propagation Delay (tpd):

    0.575 ns

  • Same Edge Skew-Max (tskwd):

    0.02 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • fmax-Min:

    2000 MHz

LMK1D1216RGZR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for clock and data signals.
  • The LMK1D1216RGZR is a highly configurable device. To configure it for a specific clock frequency, refer to the datasheet's 'Configuration and Programming' section, which provides detailed information on setting the device's registers using the I2C interface.
  • The LMK1D1216RGZR has an operating temperature range of -40°C to 85°C, as specified in the datasheet. However, it's essential to consider the device's thermal characteristics and ensure proper thermal management in your design.
  • The LMK1D1216RGZR is not specifically designed for radiation-hardened or high-reliability applications. If you require such features, consider using a different device or consulting with Texas Instruments' support team for guidance.
  • To troubleshoot I2C interface issues, use a logic analyzer or oscilloscope to verify the I2C clock and data signals. Ensure that the I2C bus is properly terminated, and the device is properly addressed and configured. Consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMK1D1216RGZR Overview

Use the download button to access the LMK1D1216RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK1D, or try a keyword search, such as Clock Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
