LMK1D2102LRGTR - Texas Instruments

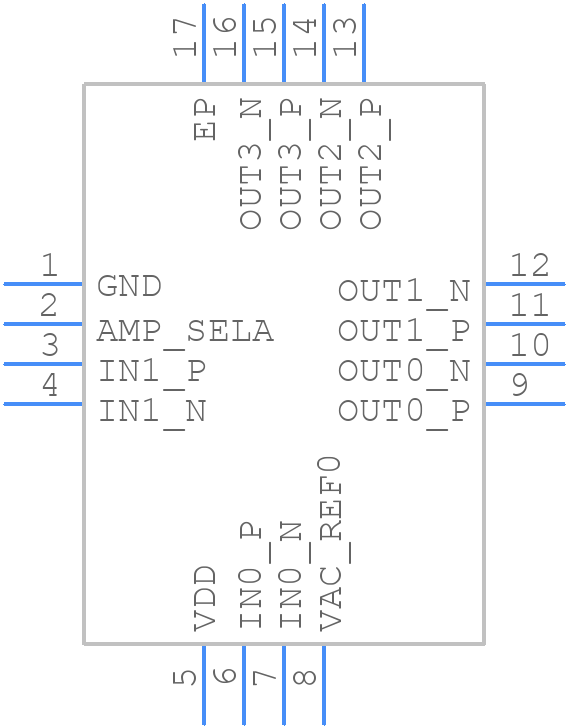

LMK1D2102LRGTR Details

• Manufacturer Part Number:

  LMK1D2102LRGTR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  ALSO OPERATES AT 2.5 V AND 3.3 V POWER SUPPLY

• Family:

  LMK

• Input Conditioning:

  DIFFERENTIAL

• JESD-30 Code:

  S-PQCC-N16

• JESD-609 Code:

  e4

• Length:

  3 mm

• Logic IC Type:

  LOW SKEW CLOCK DRIVER

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  16

• Number of True Outputs:

  4

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE WITH SERIES RESISTOR

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC16,.11SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR, 13 INCH

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  87 mA

• Prop. Delay@Nom-Sup:

  0.575 ns

• Propagation Delay (tpd):

  0.575 ns

• Same Edge Skew-Max (tskwd):

  0.02 ns

• Seated Height-Max:

  1 mm

• Supply Voltage-Max (Vsup):

  1.89 V

• Supply Voltage-Min (Vsup):

  1.71 V

• Supply Voltage-Nom (Vsup):

  1.8 V

• Surface Mount:

  YES

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm

• fmax-Min:

  2000 MHz
