LMK1D2106RHAT - Texas Instruments

Description: Clock Buffer Dual bank 6-channel output 1.8-V, 2.5-V, and 3.3-V LVDS buffer 40-VQFN -40 to 105

Download LMK1D2106RHAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

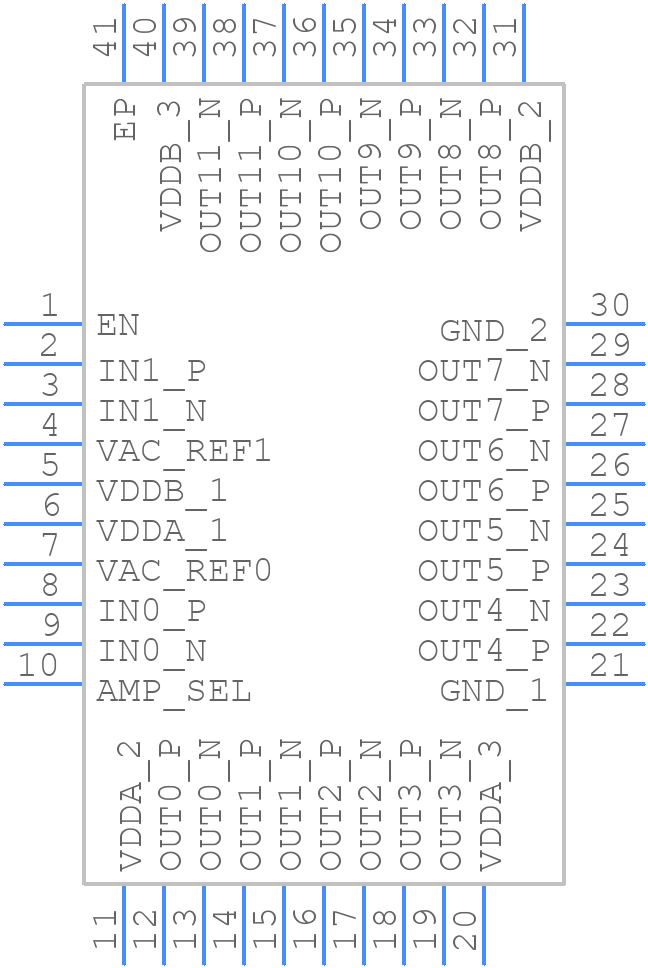

LMK1D2106RHAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMK1D2106RHAT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA0040B
click to zoom
3D Models
LMK1D2106RHAT - Texas Instruments - 3D model - Quad Flat No-Lead - RHA0040B
click to zoom

LMK1D2106RHAT Details

  • Manufacturer Part Number:

    LMK1D2106RHAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    LMK

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of True Outputs:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    140 mA

  • Prop. Delay@Nom-Sup:

    0.575 ns

  • Propagation Delay (tpd):

    0.575 ns

  • Same Edge Skew-Max (tskwd):

    0.02 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • fmax-Min:

    2000 MHz

LMK1D2106RHAT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for clock signals.
  • The LMK1D2106RHAT can be configured using the TI Clock Design Tool, which allows you to select the desired clock frequency and output format. The tool generates a configuration file that can be used to program the device.
  • The LMK1D2106RHAT can support clock frequencies up to 2100 MHz, but the maximum frequency may vary depending on the specific application and output format.
  • The LMK1D2106RHAT requires a 3.3V power supply, and it's recommended to use a low-noise, high-PSRR power supply. Decoupling capacitors should be placed close to the device, and it's recommended to follow the decoupling guidelines in the datasheet.
  • The LMK1D2106RHAT is not specifically designed for radiation-hardened or high-reliability applications, but Texas Instruments does offer radiation-hardened and high-reliability versions of some clock devices. Contact TI for more information.
