Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for clock signals.
The LMK1D2108RGZT requires a 1.8V power supply, and it's recommended to use a low-dropout regulator (LDO) with a high power supply rejection ratio (PSRR) to minimize noise. Decoupling capacitors should be placed as close as possible to the device, with a recommended value of 0.1uF to 1uF.
The LMK1D2108RGZT can support clock frequencies up to 2108 MHz, but the maximum frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and perform simulations to determine the maximum frequency for a specific design.
The LMK1D2108RGZT has a programmable clock output frequency, which can be configured using the device's register settings. The specific configuration will depend on the desired output frequency and the application. Texas Instruments provides a clocking configurator tool to help with this process.
The typical power consumption of the LMK1D2108RGZT is around 350mW, but this can vary depending on the specific application, clock frequency, and output load. It's recommended to consult the datasheet and perform power consumption calculations to determine the exact power requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMK1D2108RGZT Overview

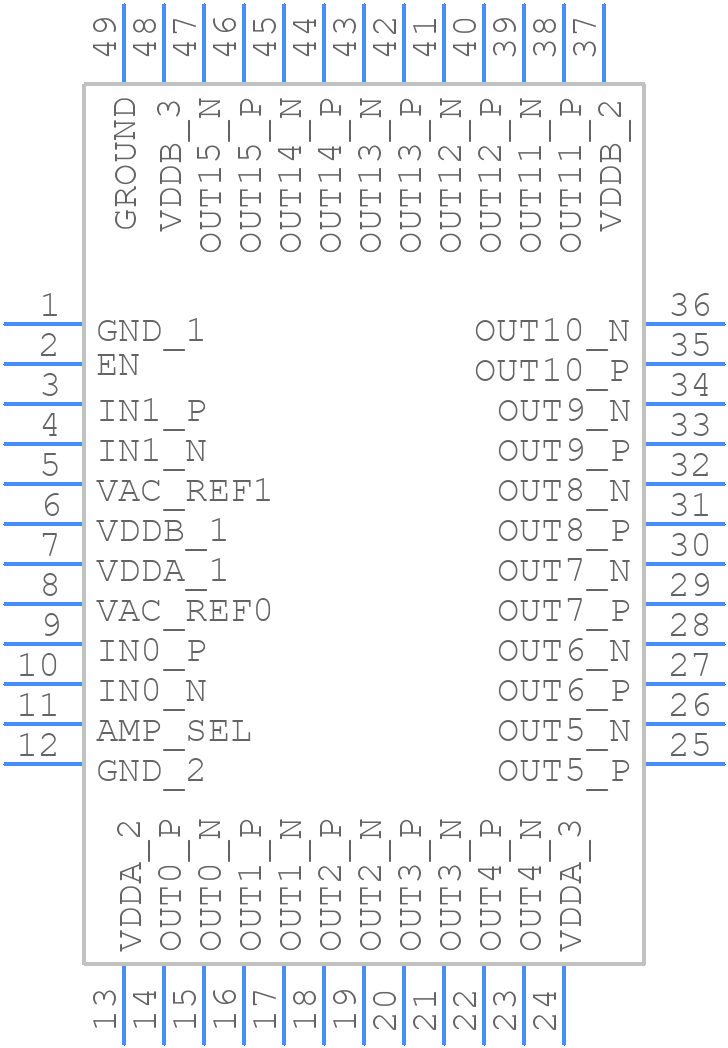

Use the download button to access the LMK1D2108RGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK1D,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
