A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 4-layer PCB with a solid ground plane and a thermal relief pattern can also help to dissipate heat efficiently.
To ensure stability and prevent oscillations, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, a low-ESR output capacitor and a high-quality input capacitor can help to reduce noise and oscillations. It's also important to decouple the input and output with a 10uF capacitor.
The maximum input voltage that can be applied to the LMP2022MMX/NOPB is 15V. Exceeding this voltage can cause damage to the device. It's essential to ensure that the input voltage is within the recommended range to ensure reliable operation.
The output voltage ripple and noise can be calculated using the formula: ΔVout = (Iout x Rl) / (f x Cout), where ΔVout is the output voltage ripple, Iout is the output current, Rl is the load resistance, f is the switching frequency, and Cout is the output capacitance. A lower output voltage ripple and noise can be achieved by using a higher switching frequency, a larger output capacitance, and a lower load resistance.
The recommended input capacitor type is a ceramic capacitor with a value of 10uF to 22uF. A ceramic capacitor with a low ESR (Equivalent Series Resistance) is preferred to reduce noise and oscillations. The input capacitor should be placed as close as possible to the device's input pins to minimize noise and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP2022MMX/NOPB Overview

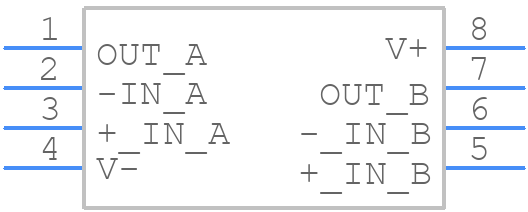

Use the download button to access the LMP2022MMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP20,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
