The maximum power dissipation of the LMP7704MAX/NOPB is 1.4W. However, this value can be affected by the operating temperature, PCB layout, and thermal management.
To ensure stability in the LMP7704MAX/NOPB, it is recommended to use a minimum output capacitance of 10uF, and to place the capacitor as close to the output pin as possible. Additionally, a 1uF capacitor can be added between the VIN and GND pins to improve stability.
The recommended input capacitor value for the LMP7704MAX/NOPB is 1uF to 10uF, with a voltage rating of at least 6.3V. A higher capacitance value can be used for improved noise filtering and ripple rejection.
The LMP7704MAX/NOPB is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It is recommended to derate the device's power dissipation and to ensure proper thermal management to prevent overheating.
For optimal performance with the LMP7704MAX/NOPB, it is recommended to follow good PCB layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, the device's thermal pad should be connected to a solid ground plane to improve heat dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP7704MAX/NOPB Overview

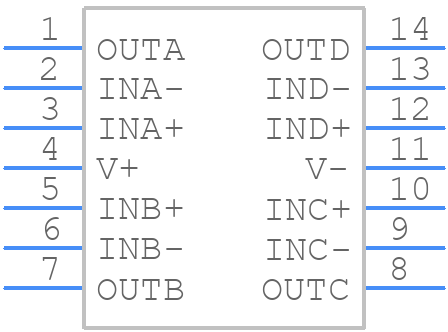

Use the download button to access the LMP7704MAX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP77,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
