Texas Instruments recommends a star-ground layout, with the op-amp's ground pin connected to a central ground point. Additionally, keep the input and output traces short and away from noise sources, and use a solid ground plane to reduce electromagnetic interference (EMI).
Choose input capacitors with a low equivalent series resistance (ESR) and a high self-resonant frequency (SRF) to minimize noise and ensure stability. For output capacitors, select ones with a low ESR and a high capacitance value to improve load transient response and stability. Consult the datasheet and application notes for specific recommendations.
The maximum power dissipation of the LMP7712MM/NOPB is dependent on the package type and ambient temperature. Calculate the power dissipation using the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current. Ensure the calculated power dissipation is within the recommended limits to prevent overheating.
The LMP7712MM/NOPB is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Consult the datasheet and application notes for specific guidance on operating the device in high-temperature environments, and consider derating the device's performance and power dissipation accordingly.
To ensure EMC, follow proper PCB layout and design practices, such as using a solid ground plane, minimizing loop areas, and keeping sensitive traces away from noise sources. Additionally, use shielding and filtering techniques, such as ferrite beads and common-mode chokes, to reduce electromagnetic radiation and susceptibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP7712MM/NOPB Overview

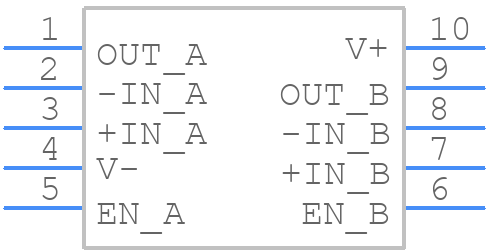

Use the download button to access the LMP7712MM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP77,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
