A good PCB layout for the LMP8481MME-S/NOPB involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the input and output capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be chosen carefully to ensure it meets the minimum ESR requirement. It's also recommended to add a small capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
The LMP8481MME-S/NOPB can handle input voltages up to 42V, but it's recommended to limit the input voltage to 36V to ensure reliable operation and to prevent damage to the device.
The LMP8481MME-S/NOPB is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliable operation. It's also essential to ensure good thermal design and heat sinking to prevent overheating.
To troubleshoot issues with the LMP8481MME-S/NOPB, start by checking the PCB layout and component values against the recommended values. Verify that the input and output capacitors meet the recommended specifications. Use an oscilloscope to check for oscillations or ringing on the output. If the issue persists, try adding a small capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP8481MME-S/NOPB Overview

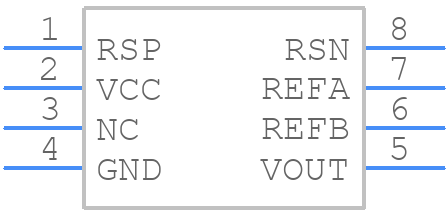

Use the download button to access the LMP8481MME-S/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP84,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
