A good PCB layout for the LMP8601QMAX/NOPB involves separating the analog and digital grounds, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer and a dedicated power layer.
To ensure the LMP8601QMAX/NOPB operates within its recommended operating conditions, verify that the input voltage is within the specified range (2.7V to 5.5V), the ambient temperature is within the specified range (-40°C to 125°C), and the device is not exposed to excessive moisture or humidity.
A recommended input filter configuration for the LMP8601QMAX/NOPB involves using a low-pass filter with a cutoff frequency of around 10 kHz to 100 kHz, consisting of a series resistor and capacitor, followed by a ferrite bead or a common-mode choke.
To troubleshoot issues with the LMP8601QMAX/NOPB, start by verifying the PCB layout and ensuring that the device is properly decoupled. Check for any signs of overheating, and verify that the input voltage and current are within the specified ranges. Use an oscilloscope to measure the output voltage and current, and look for any signs of oscillations or instability.
A recommended output capacitor configuration for the LMP8601QMAX/NOPB involves using a low-ESR ceramic capacitor with a value of around 10 μF to 22 μF, placed as close to the output pin as possible. Avoid using electrolytic capacitors or capacitors with high ESR values.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP8601QMAX/NOPB Overview

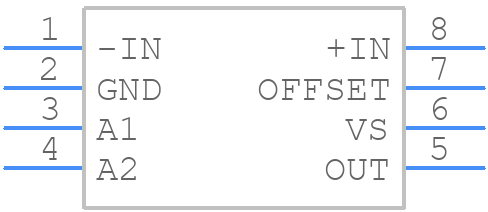

Use the download button to access the LMP8601QMAX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP86,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
