LMP8602QMMX/NOPB - Texas Instruments

Description: SP Amp Current Sense Amp Single 5.5V Automotive 8-Pin VSSOP T/R

Download LMP8602QMMX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

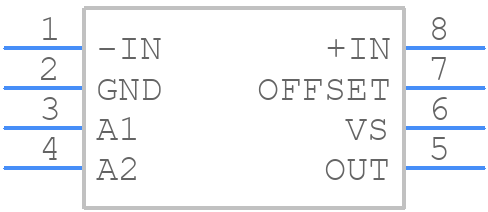

LMP8602QMMX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMP8602QMMX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK(S-PDOS-G8)
click to zoom
3D Models
LMP8602QMMX/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGK(S-PDOS-G8)
click to zoom

LMP8602QMMX/NOPB Details

  • Manufacturer Part Number:

    LMP8602QMMX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Common Mode Voltage-Max:

    60 V

  • Common-mode Reject Ratio-Min:

    90 dB

  • Input Offset Voltage-Max:

    1000 µV

  • JESD-30 Code:

    R-SDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.07 mm

  • Slew Rate-Nom:

    0.4 V/us

  • Supply Current-Max:

    1.5 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Nom:

    50

  • Width:

    3 mm

LMP8602QMMX/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMP8602QMMX/NOPB involves separating analog and digital grounds, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The choice of input and output capacitors for the LMP8602QMMX/NOPB depends on the specific application and operating conditions. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired cutoff frequency and the impedance of the input and output stages.
  • The maximum power dissipation of the LMP8602QMMX/NOPB is 1.4W. To ensure it doesn't overheat, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to ensure good airflow around the device. Additionally, the device should be operated within the recommended operating temperature range of -40°C to 125°C.
  • The gain and bandwidth of the LMP8602QMMX/NOPB can be configured by selecting the appropriate values for the external resistors and capacitors. The datasheet provides a gain-bandwidth product equation that can be used to determine the required component values. Additionally, the device can be configured for different gain settings using the GAIN pin.
  • The recommended operating voltage range for the LMP8602QMMX/NOPB is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
