Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for signal traces.
The LMP90077MH/NOPB requires a stable power supply with minimal noise and ripple. Use a high-quality voltage regulator and decouple the power pins with 0.1uF and 10uF capacitors. Additionally, use a 10nF capacitor to decouple the analog and digital power domains.
The LMP90077MH/NOPB is rated for operation from -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, so it's recommended to operate within a narrower range (e.g., 0°C to 85°C) for optimal performance.
To minimize noise, ensure that the device is properly grounded, use a low-noise power supply, and minimize digital switching noise. Additionally, use the device's built-in noise reduction features, such as the noise filter and gain calibration, to optimize noise performance.
The LMP90077MH/NOPB requires calibration to ensure optimal performance. Follow the calibration procedure outlined in the datasheet, which includes gain calibration, offset calibration, and noise filter calibration. It's also recommended to perform calibration at multiple temperatures to ensure optimal performance across the operating temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP90077MH/NOPB Overview

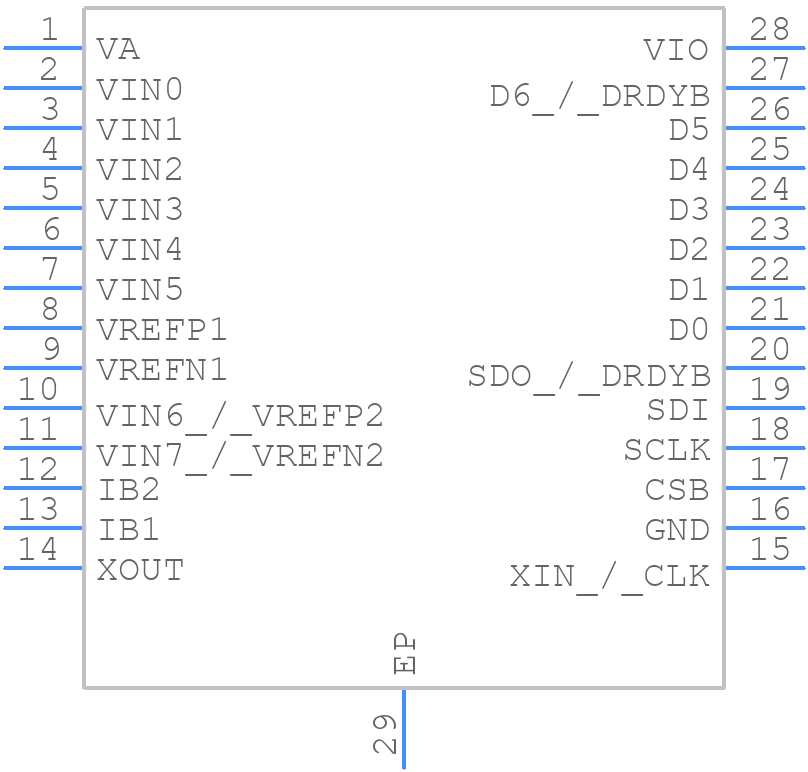

Use the download button to access the LMP90077MH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP90,
or try a keyword search, such as Other Signal Circuits
