Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect signals to the ground plane.
The LMP90078MH/NOPB requires a stable power supply with adequate decoupling. Use a low-ESR capacitor (e.g., 10uF) close to the device's power pins, and consider adding additional decoupling capacitors (e.g., 100nF) between the power pins and ground.
The LMP90078MH/NOPB is specified to operate from -40°C to 125°C, but it's essential to consider the device's thermal characteristics, such as junction temperature and thermal resistance, to ensure reliable operation in your specific application.
To minimize noise, ensure that the device is properly biased, and the input and output signals are properly terminated. Additionally, consider using a noise filter or a low-pass filter to reduce high-frequency noise.
The LMP90078MH/NOPB is designed to drive a 50Ω load, and the input impedance is typically around 1kΩ. However, the optimal impedance values may vary depending on your specific application, so it's essential to consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP90078MH/NOPB Overview

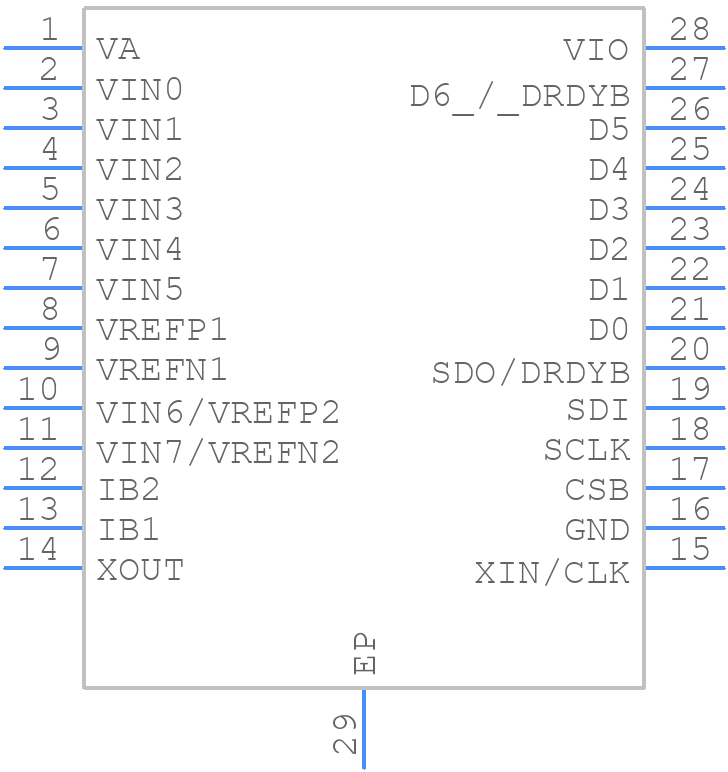

Use the download button to access the LMP90078MH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP90,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
