Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for signal traces.
To ensure accurate voltage measurement, it's essential to follow proper layout and routing guidelines, use a low-impedance voltage source, and minimize noise and interference. Additionally, calibrate the device using the CAL pin and follow the calibration procedure outlined in the datasheet.
The LMP90078 is rated for operation from -40°C to 125°C, but it's essential to consider the device's thermal characteristics, such as thermal resistance and power dissipation, to ensure reliable operation within the specified temperature range.
The LMP90078 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing, such as using an ESD wrist strap, mat, or workstation, and storing the device in an ESD-protective package.
The recommended power-up sequence is to apply the analog supply voltage (AVDD) first, followed by the digital supply voltage (DVDD), and then the clock signal. This ensures proper device initialization and prevents potential latch-up or damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP90078MHE/NOPB Overview

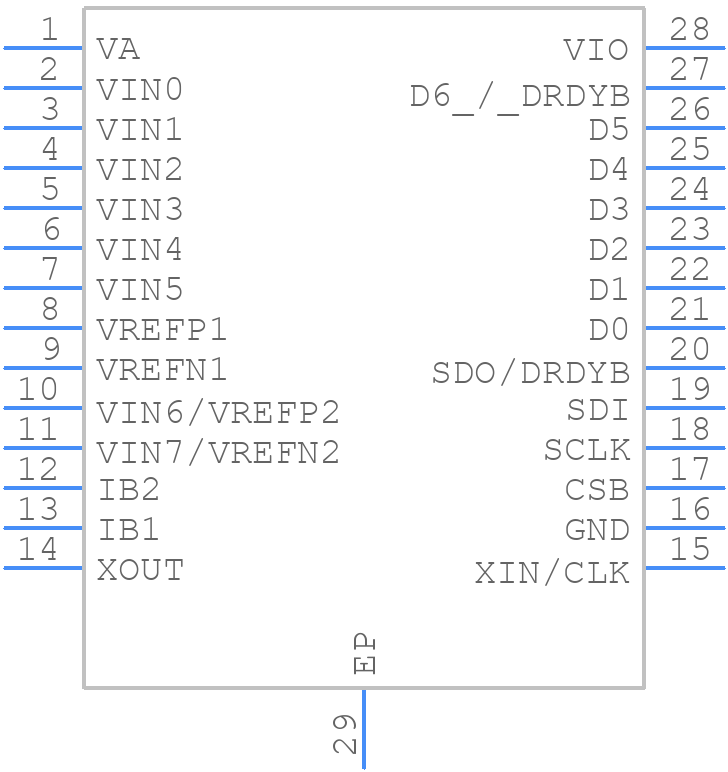

Use the download button to access the LMP90078MHE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP90,
or try a keyword search, such as Other Signal Circuits
