Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for signal traces.
To ensure accurate temperature measurement, it's essential to follow proper PCB design and layout guidelines, avoid thermal gradients, and calibrate the temperature sensor using the calibration registers provided in the datasheet.
The maximum power dissipation for the LMP90099MH/NOPB is dependent on the operating conditions and package type. Engineers can calculate the power dissipation using the formula provided in the datasheet, taking into account the supply voltage, current consumption, and thermal resistance of the package.
To optimize noise performance, engineers should follow the recommended pin configurations, use proper bypassing and decoupling, and ensure that the device is operated within the recommended supply voltage range. Additionally, using a low-noise power supply and minimizing digital noise coupling can also help improve noise performance.
The internal voltage reference has limitations in terms of accuracy and temperature drift. To improve its accuracy, engineers can use an external voltage reference or calibrate the internal reference using the calibration registers provided in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP90099MH/NOPB Overview

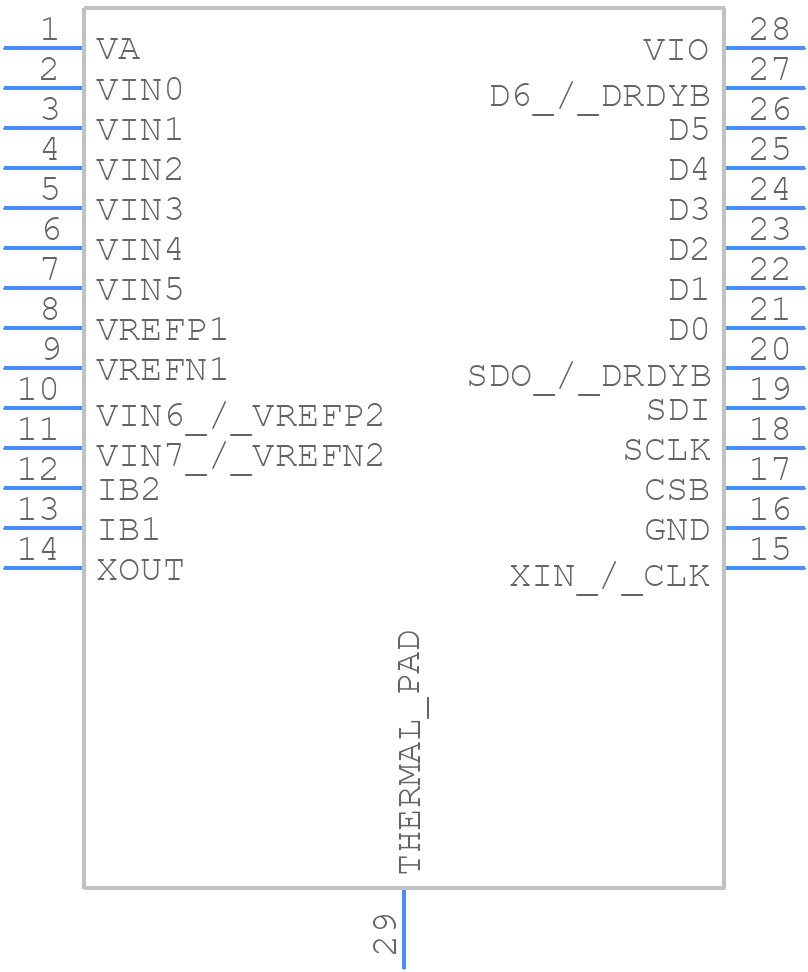

Use the download button to access the LMP90099MH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP90,
or try a keyword search, such as Other Signal Circuits
