LMP91000SD/NOPB - Texas Instruments

Description: Configurable AFE Potentiostat for Low-Power Chemical Sensing Applications

Download LMP91000SD/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

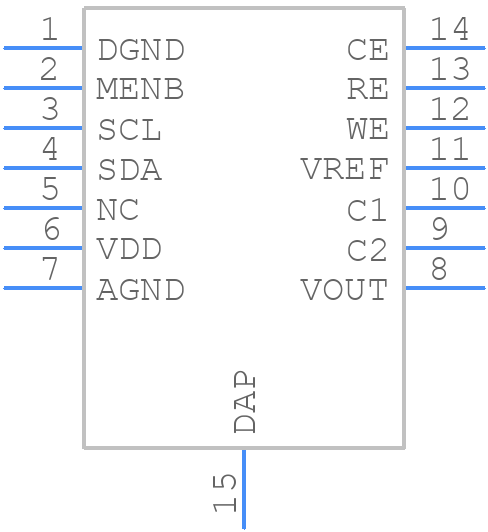

Symbol
LMP91000SD/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMP91000SD/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NHL0014B
click to zoom
3D Models
LMP91000SD/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NHL0014B
click to zoom

LMP91000SD/NOPB Details

  • Manufacturer Part Number:

    LMP91000SD/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SON

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.16,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LMP91000SD/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMP91000SD/NOPB involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the sensor to minimize noise. TI provides a recommended layout in the datasheet and application notes.
  • Calibration involves applying a known gas concentration to the sensor and adjusting the gain and offset registers of the LMP91000SD/NOPB to match the expected output. TI provides a calibration procedure in the datasheet and application notes.
  • The LMP91000SD/NOPB can operate from -40°C to 125°C, but the optimal operating temperature range for gas sensing is between 20°C to 40°C. Operating outside this range may affect sensor accuracy and device reliability.
  • While it's possible to use the LMP91000SD/NOPB with a different sensor, it's not recommended. The device is optimized for use with TI's specific gas sensors, and using a different sensor may require significant modifications to the device's configuration and calibration.
  • To ensure EMC, follow proper PCB layout and design guidelines, use shielding and filtering, and ensure that the device is properly grounded. TI provides EMC guidelines in the datasheet and application notes.
