LMP91000SDE/NOPB - Texas Instruments

Description: Texas Instruments,LMP91000SDE/NOPB,AFE LMP91000SDE/NOPB, Analogue Front End IC, 1-channel Serial-I2C, 14-Pin WSON

Download LMP91000SDE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

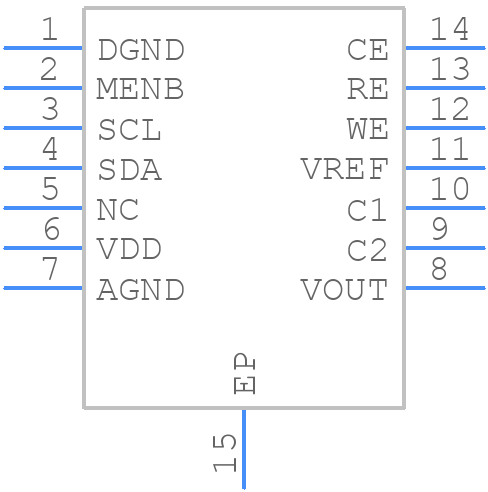

LMP91000SDE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMP91000SDE/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NHL0014B
click to zoom
3D Models
LMP91000SDE/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NHL0014B
click to zoom

LMP91000SDE/NOPB Details

  • Manufacturer Part Number:

    LMP91000SDE/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SON

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.16,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LMP91000SDE/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMP91000SDE/NOPB involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the sensor to minimize noise.
  • Optimizing the gain and offset of the LMP91000SDE/NOPB involves adjusting the gain resistors (R1 and R2) and the offset voltage (Vos) to match the specific requirements of the sensor and application.
  • The LMP91000SDE/NOPB can operate over a temperature range of -40°C to 125°C, but the device's performance may degrade at extreme temperatures.
  • To ensure EMC with the LMP91000SDE/NOPB, use a shielded enclosure, keep the device away from high-frequency sources, and use filtering and shielding on the input and output lines.
  • The recommended power-up sequence for the LMP91000SDE/NOPB is to apply the analog power supply (AVDD) before the digital power supply (DVDD), and to ensure that the analog power supply is stable before applying the digital power supply.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
