LMP91000SDX/NOPB - Texas Instruments

Description: Sensor AFE System Analog Output 3.3V/5V 14-Pin WSON EP T/R

Download LMP91000SDX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

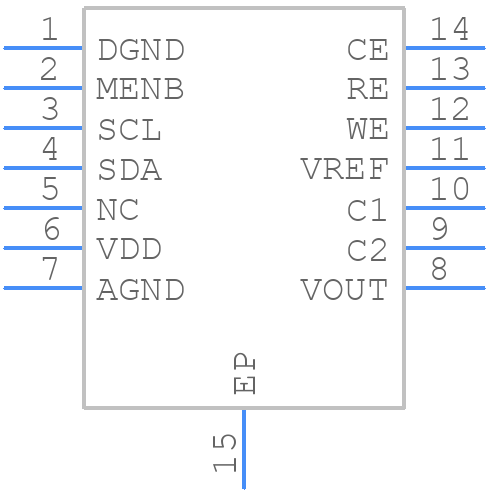

LMP91000SDX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMP91000SDX/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NHL0014B
click to zoom
3D Models
LMP91000SDX/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NHL0014B
click to zoom

LMP91000SDX/NOPB Details

  • Manufacturer Part Number:

    LMP91000SDX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.16,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LMP91000SDX/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMP91000SDX/NOPB involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the sensor to minimize noise. TI provides a recommended PCB layout in the datasheet and application notes.
  • Calibration of the LMP91000SDX/NOPB involves applying a known gas concentration to the sensor and adjusting the gain and offset registers to achieve the desired output. TI provides a calibration procedure in the datasheet and application notes.
  • The LMP91000SDX/NOPB can operate over a temperature range of -40°C to 125°C, but the optimal operating range for gas sensing is between 0°C to 50°C.
  • The LMP91000SDX/NOPB is designed to work with TI's TGS2600 and TGS2602 gas sensors, but it can be used with other gas sensors with similar characteristics. However, the performance and accuracy may vary depending on the sensor used.
  • The LMP91000SDX/NOPB can be interfaced with a microcontroller using the I2C or SPI interface. TI provides example code and interface guidelines in the datasheet and application notes.
