LMP91051MT/NOPB - Texas Instruments

Description: Configurable AFE for (NDIR) Sensing Applications

Download LMP91051MT/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

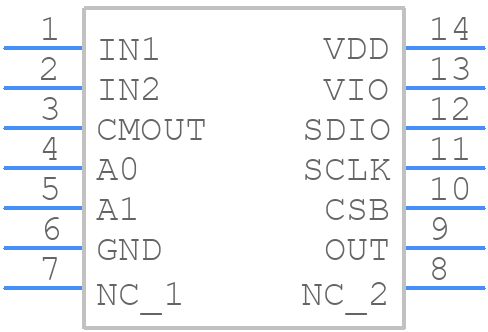

LMP91051MT/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMP91051MT/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
LMP91051MT/NOPB - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

LMP91051MT/NOPB Details

  • Manufacturer Part Number:

    LMP91051MT/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    GREEN, PLASTIC, TSSOP-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LMP91051MT/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general analog circuit layout guidelines, such as separating analog and digital grounds, using a solid ground plane, and minimizing noise coupling.
  • The LMP91051MT/NOPB does not require calibration. It is a plug-and-play device that can be used with the default settings. However, if you need to adjust the gain or offset, you can use the internal registers to make adjustments.
  • The maximum operating temperature range for the LMP91051MT/NOPB is -40°C to 125°C. However, it's recommended to operate the device within the specified temperature range for optimal performance and reliability.
  • No, the LMP91051MT/NOPB is designed to operate with a 3.3V power supply. Using a 5V power supply may damage the device or affect its performance.
  • The LMP91051MT/NOPB can be interfaced with a microcontroller using the I2C or SPI interface. You can use the datasheet to determine the correct pin connections and communication protocols.
