Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the device close to the analog input pins to minimize noise. Additionally, it's recommended to keep the analog and digital grounds separate and connect them at a single point.
To optimize performance in high-temperature environments, ensure good thermal dissipation by using a heat sink or thermal pad, and consider reducing the power consumption by optimizing the sampling rate and gain settings. Additionally, ensure that the device is operated within its specified temperature range.
The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or other issues.
The LMP91300NHZT's digital output data is in a 24-bit, 2's complement format. To handle this data, ensure that your microcontroller or digital signal processor is configured to receive and process 24-bit data, and consider using a FIFO or buffer to handle the data stream.
The recommended method for calibrating the LMP91300NHZT is to use the device's internal calibration registers to adjust the gain and offset. Additionally, consider using an external calibration signal or reference voltage to improve accuracy.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP91300NHZT Overview

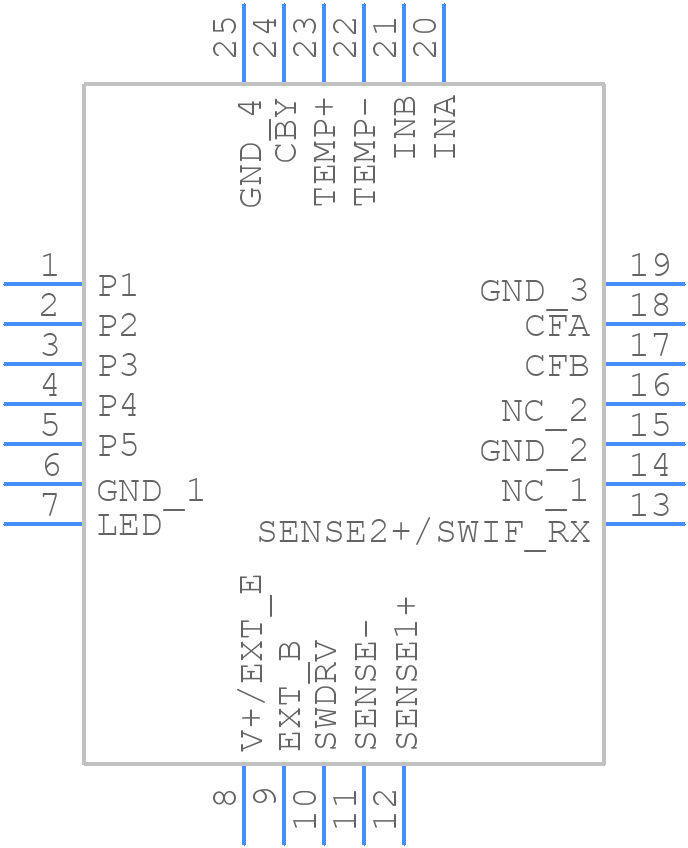

Use the download button to access the LMP91300NHZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP91,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
