LMP91300YZRR - Texas Instruments

Description: Inductive Proximity Sensor Analog Output 20-Pin DSBGA T/R

Download LMP91300YZRR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

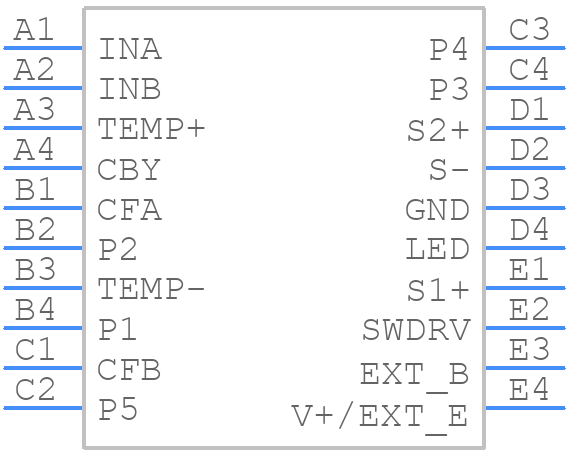

LMP91300YZRR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMP91300YZRR - Texas Instruments PCB footprint - BGA - BGA - YZR0020 1
click to zoom
3D Models
LMP91300YZRR - Texas Instruments - 3D model - BGA - YZR0020 1
click to zoom

LMP91300YZRR Details

  • Manufacturer Part Number:

    LMP91300YZRR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XBGA-B20

  • JESD-609 Code:

    e1

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.675 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    6.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.3 mm

LMP91300YZRR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the LMP91300 evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The internal voltage reference of the LMP91300 can be calibrated by using the VREF_CAL pin and following the calibration procedure outlined in the datasheet. This involves applying a known voltage to the VREF_CAL pin and adjusting the internal reference voltage to match the applied voltage.
  • The maximum current that can be sourced or sunk by the analog output of the LMP91300 is typically limited by the output stage's current capability, which is specified as ±5mA in the datasheet. However, this value may vary depending on the specific application and output load.
  • Overcurrent protection for the analog output can be implemented using an external current sense resistor and a comparator or a dedicated overcurrent protection IC. The current sense resistor is connected in series with the output, and the comparator or overcurrent protection IC monitors the voltage across the resistor to detect overcurrent conditions.
  • The recommended power-up sequence for the LMP91300 is to first apply the analog supply voltage (AVDD) and then the digital supply voltage (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent unwanted digital noise from affecting the analog performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMP91300YZRR Overview

Use the download button to access the LMP91300YZRR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP91, or try a keyword search, such as Other Signal Circuits
